430446-503

Active

Laird Thermal Systems, Inc.

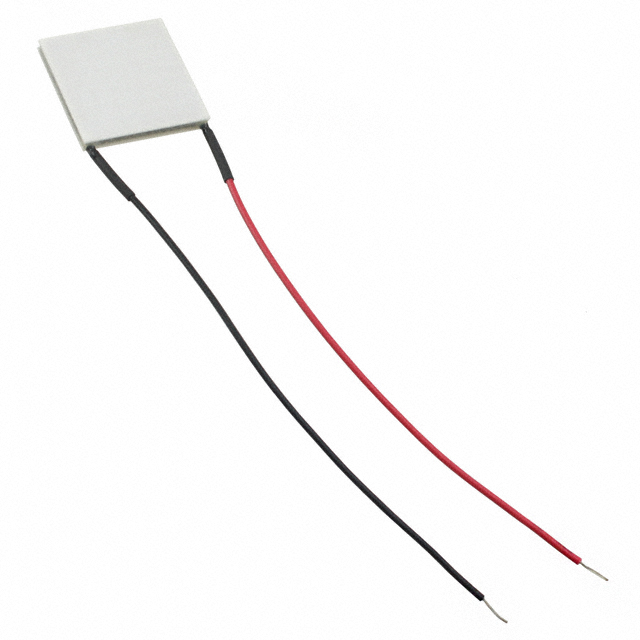

PELTIER CP08,127,05,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP08,127,05,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	430446-503

Current - Max [Max]	2.6 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.1 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	22.6 W
Resistance	5.1 Ohms
Size / Dimension [x]	24.6 mm
Size / Dimension [y]	24.6 mm
Voltage - Max [Max]	14.4 V

PELTIER CP08,127,05,L1,RT,W4.5

Part	Current - Max [Max]	Voltage - Max [Max]	Features	Number of Stages	Height [z]	Resistance	Qmax @ Th	Delta Tmax @ Th	Operating Temperature	Size / Dimension [x]	Size / Dimension [y]
Laird Thermal Systems, Inc. 430446-503	2.6 A	14.4 V	Lead Wires, Sealed - Silicone RTV	1	3.1 mm	5.1 Ohms	22.6 W	67 °C	80 °C	24.6 mm	24.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 22.6W @ 25°C 2.6 A 80°C
