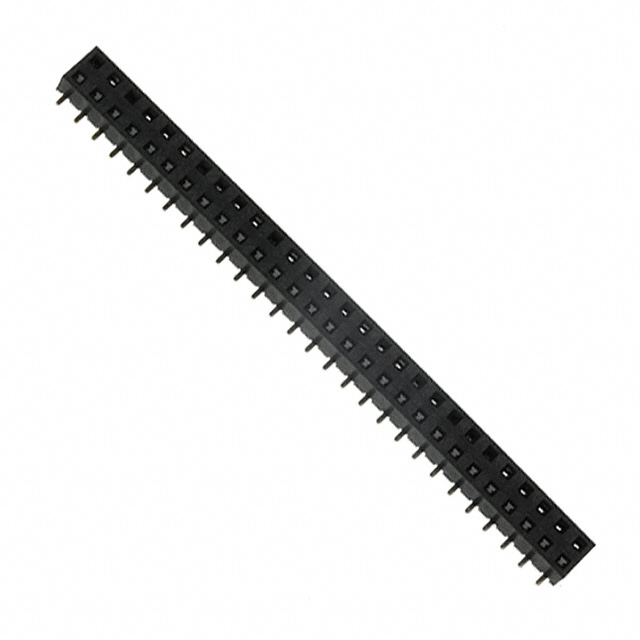

NPPN282GFNP-RC

Active

Sullins Connector Solutions

2MM 2MM DOUBLE ROW GOLD 2A -40℃~+105℃ 56P VERTICAL WELDING 2.79MM SMD,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

NPPN282GFNP-RC

Active

Sullins Connector Solutions

2MM 2MM DOUBLE ROW GOLD 2A -40℃~+105℃ 56P VERTICAL WELDING 2.79MM SMD,P=2MM FEMALE HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NPPN282GFNP-RC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Color	Black
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	56
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

NPPN282 Series

Part	Mounting Type	Fastening Type	Contact Shape	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Current Rating (Amps)	Insulation Material	Insulation Color	Contact Finish Thickness - Mating	Contact Type	Number of Positions	Number of Rows	Connector Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Material Flammability Rating	Features	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Contact Length - Post
Sullins Connector Solutions NPPN282GFNP-RC	Surface Mount	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm	2 A	Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header Top or Bottom Entry	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0	Board Guide	Gold
Sullins Connector Solutions NPPN282AFEN-RC	Through Hole	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm		Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0		Gold	0.11 in	2.79 mm	4.3 mm	0.169 "
Sullins Connector Solutions NPPN282AFCN-RC	Through Hole	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm		Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0		Gold		2.4 mm	4.3 mm	0.169 "	0.094 in
Sullins Connector Solutions NPPN282FFKP-RC	Surface Mount	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm	2 A	Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0	Board Guide	Gold			4.4 mm	0.173 in
Sullins Connector Solutions NPPN282GHNP-RC	Surface Mount	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm		Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header Bottom Entry	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0	Board Guide	Gold
Sullins Connector Solutions NPPN282GFNS-RC	Surface Mount	Push-Pull	Square	Gold	-40 °C	105 ░C	0.079 in	2 mm	2 A	Nylon 6T Polyamide (PA6T)	Black	Flash	Female Socket	56	2	Header Top or Bottom Entry	Phosphor Bronze	0.079 in	2 mm	Flash	All	Solder	UL94 V-0		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 2.72
LCSC	Piece	1	$ 7.20
		200	$ 2.88
		500	$ 2.78
		1000	$ 2.73

Description

General part information

NPPN282 Series

56 Position Header, Top or Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold
