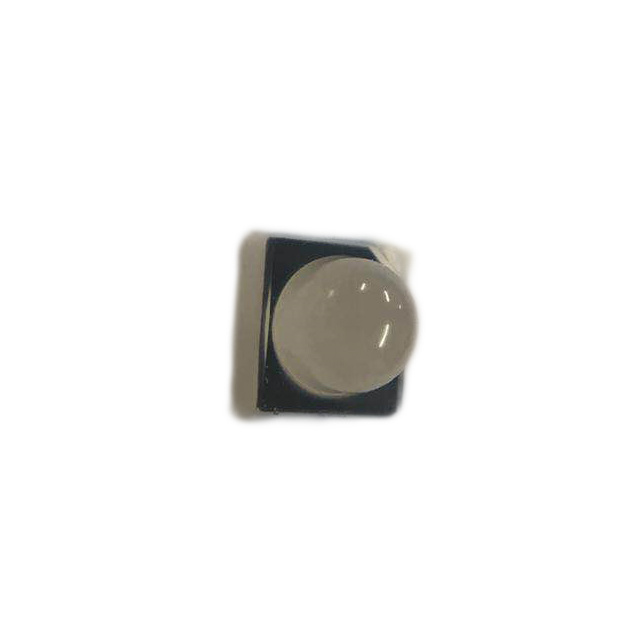

QBLP677AD-RGB2

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4PLCC SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED RGB DIFFUSED 4PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Dominant	Millicandela Rating	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Voltage - Forward (Vf) (Typ)	Mounting Type	Color	Package / Case	Lens Size [diameter]	Configuration	Height (Max) [Max]	Viewing Angle	Supplier Device Package	Current - Test	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Lens Style	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max] [z]
QT Brightek (QTB) QBLP677-Y	588 nm	780 mcd	Clear	2.8 mm	3.2 mm	Colorless	2 V	Surface Mount	Yellow	4-SMD J-Lead	2.4 mm	Standard	1.9 mm	120 °	4-PLCC	20 mA
QT Brightek (QTB) QBLP677BD-RGB5	465 nm 525 nm 620 nm		Clear	2.8 mm	3.5 mm	Colorless		Surface Mount	Blue Green Red	4-SMD J-Lead	2.4 mm	Common Cathode		30 °	4-PLCC		2 V	3.1 V	3.2 V	20 mA	20 mA	20 mA	Round with Domed Top	200 mcd	120 mcd	340 mcd	3.6 mm
QT Brightek (QTB) QBLP677AD-RGB2	465 nm 525 nm 620 nm		Diffused			White	2 V 2.8 V 3.1 V	Surface Mount	Blue Green Red	4-SMD J-Lead	2.4 mm	Common Anode		30 °	4-PLCC					20 mA	20 mA	20 mA	Round with Domed Top	760 mcd	300 mcd	2340 mcd	3.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 620nm Red, 525nm Green, 465nm Blue LED Indication - Discrete 2V Red, 2.8V Green, 3.1V Blue 4-SMD, J-Lead
