1883828

Active

Phoenix Contact

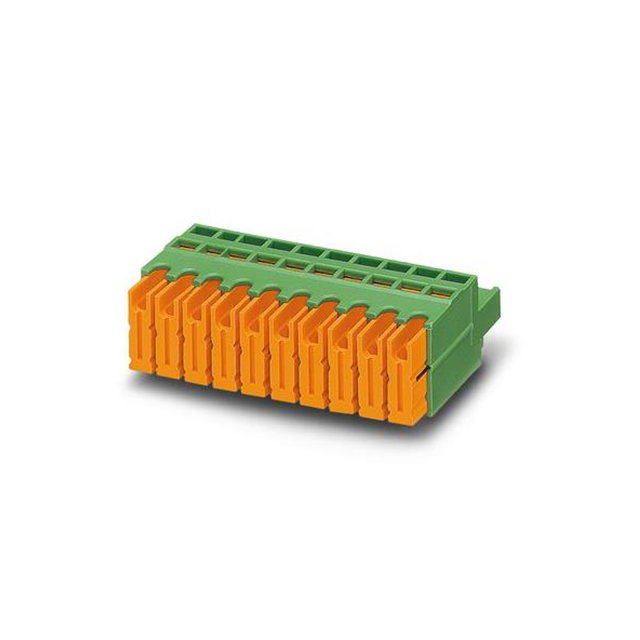

PLUGGABLE TERMINAL BLOCKS 14 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 14 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.97
Sager	N/A	50	$ 23.80

General part information

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Plug 20-18 AWG IDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1883828	QC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	10 A	10 - 12 A
Current - UL	10 A	10 A
Features	-	Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 - 0.772 in
Insulation Height	15 mm	15 - 19.6 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	14	2 - 15
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	14	2 - 15
Termination Style	IDC	IDC, Screwless - IDC
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	1 kV	1 kV
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 - 24 AWG
Wire Gauge or Range - AWG [Min]	18 AWG	16 - 18 AWG
Wire Gauge or Range - mm˛ [Max]	1 mm˛	1 - 1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.5 mm˛	0.2 - 0.5 mm˛
Wire Gauge or Range - mm²	-	0.5 mm²
Wire Gauge or Range - mm²	-	1 mm²

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Plug 20-18 AWG IDC

Part	Number of Levels	Insulation Height	Insulation Height	Number of Positions	Housing Material	Current - UL	Current - IEC	Voltage - UL	Type	Material Flammability Rating	Voltage - IEC	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Mounting Type	Contact Mating Finish	Pitch [x]	Pitch [x]	Positions Per Level	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1883828	1	0.591 in	15 mm	14	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	14
Phoenix Contact 1883255	1	0.591 in	15 mm	2	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	2
Phoenix Contact 1718096	1	0.772 "	19.6 mm	15	Polyamide (PA), Nylon	10 A	12 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1.5 mm˛	0.2 mm˛	16 AWG	24 AWG	Screwless - IDC	Free Hanging (In-Line)	Tin	0.197 in	5 mm	15
Phoenix Contact 1883352	1	0.591 in	15 mm	2	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green			18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	2	Mating Flange	0.5 mm²	1 mm²
Phoenix Contact 1883831	1	0.591 in	15 mm	15	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	15
