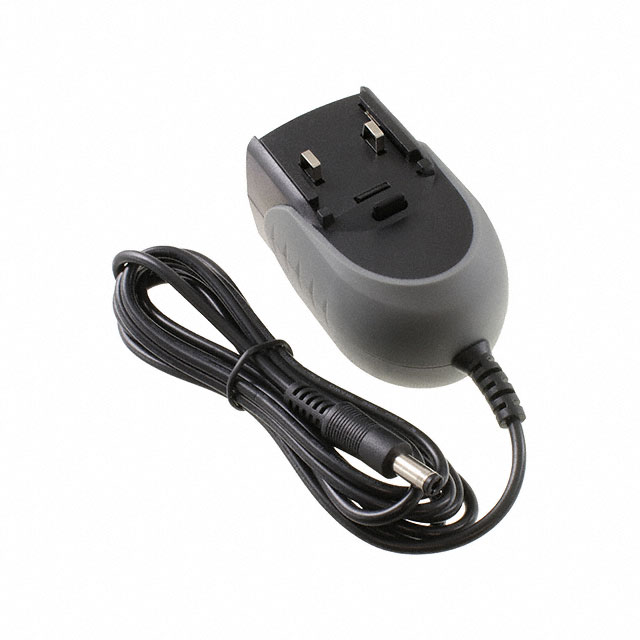

TR15RA120-11E03-GY-BK VI

Obsolete

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 12V 13W

Deep-Dive with AI

Search across all available documentation for this part.

TR15RA120-11E03-GY-BK VI

Obsolete

Cincon Electronics Co. LTD

AC/DC WALL MOUNT ADAPTER 12V 13W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TR15RA120-11E03-GY-BK VI

Applications	ITE (Commercial)
Approval Agency	cULus, CE, PSE, GS
Cord Length	70.9 in
Cord Length	1.8 m
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [z]	12 mm
Polarization	Positive Center
Power (Watts)	13 W
Region Utilized	International
Size / Dimension [x]	3.17 in
Size / Dimension [x]	80.6 mm
Size / Dimension [y]	1.89 in
Size / Dimension [y]	47.9 mm
Size / Dimension [z]	1.71 in
Size / Dimension [z]	43.3 mm
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V

TR15RA Series

Part	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Output	Current - Output (Max) [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Form	Approval Agency	Cord Length	Cord Length	Polarization	Input Connector	Power (Watts)	Output Connector [z]
Cincon Electronics Co. LTD TR15RA090-01E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	9 V	1.4 A	90 VAC	264 VAC	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	13 W
Cincon Electronics Co. LTD TR15RA050-11E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	5 V	2 A	90 VAC	264 VAC	2.1 mm 5.5 mm		Barrel Plug	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	10 W	12 mm
Cincon Electronics Co. LTD TR15RA240-11E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	24 V	625 mA	90 VAC	264 VAC	2.1 mm 5.5 mm		Barrel Plug	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	15 W	12 mm
Cincon Electronics Co. LTD TR15RA150-11E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	15 VDC	1 A	90 VAC	264 VAC	2.1 mm 5.5 mm		Barrel Plug	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	15 W	12 mm
Cincon Electronics Co. LTD TR15RA180-01E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	18 V	830 mA	90 VAC	264 VAC	2.1 mm 5.5 mm	12 mm	Barrel Plug R/A	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	15 W
Cincon Electronics Co. LTD TR15RA120-11E03-GY-BK VI	CoC Tier 2 Level VI	1.89 in	1.71 in	3.17 in	47.9 mm	43.3 mm	80.6 mm	Multi-Blade (Sold Separately)	-20 C	60 °C	ITE (Commercial)	12 V		90 VAC	264 VAC	2.1 mm 5.5 mm		Barrel Plug	International	Wall Mount (Class II)	CE cULus GS PSE	70.9 in	1.8 m	Positive Center	Multi-Blade	13 W	12 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TR15RA Series

12V 13 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Documents

Technical documentation and resources

No documents available
