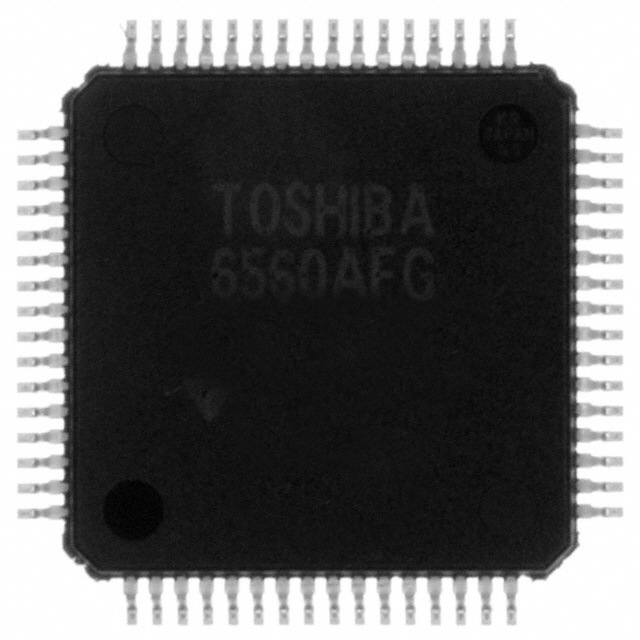

TB6560AFG,8

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER PAR 64HQFP

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

IC MOTOR DRIVER PAR 64HQFP

Technical Specifications

Parameters and characteristics for this part

Specification	TB6560AFG,8

Applications	General Purpose
Current - Output	1.5 A
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Output Configuration	Half Bridge (4)
Package / Case	64-TQFP Exposed Pad
Supplier Device Package	64-HQFP (10x10)
Voltage - Load [Max]	34 V
Voltage - Load [Min]	4.5 V
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration	Technology	Package / Case	Motor Type - Stepper	Interface	Function	Mounting Type	Current - Output	Step Resolution	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Applications
Toshiba Semiconductor and Storage TB6560AFTG,C8,EL	4.5 V	5.5 V	Half Bridge (4)	Power MOSFET	48-VFQFN Exposed Pad	Bipolar	Parallel	Driver - Fully Integrated Control and Power Stage	Surface Mount	2.5 A	1 1/16 1/2 1/4 1/8	-30 °C	85 °C	4.5 V	34 V	48-QFN (7x7)	General Purpose
Toshiba Semiconductor and Storage TB6560AFTG,8,EL	4.5 V	5.5 V	Half Bridge (4)	Power MOSFET	48-VFQFN Exposed Pad	Bipolar	Parallel	Driver - Fully Integrated Control and Power Stage	Surface Mount	1.5 A	1 1/16 1/2 1/4 1/8	-30 °C	85 °C	4.5 V	34 V	48-QFN (7x7)	General Purpose
Toshiba Semiconductor and Storage TB6560AFG,8	4.5 V	5.5 V	Half Bridge (4)		64-TQFP Exposed Pad	Bipolar	Parallel	Driver - Fully Integrated Control and Power Stage	Surface Mount	1.5 A		-30 ░C	85 °C	4.5 V	34 V	64-HQFP (10x10)	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Motor Driver Parallel 64-HQFP (10x10)
