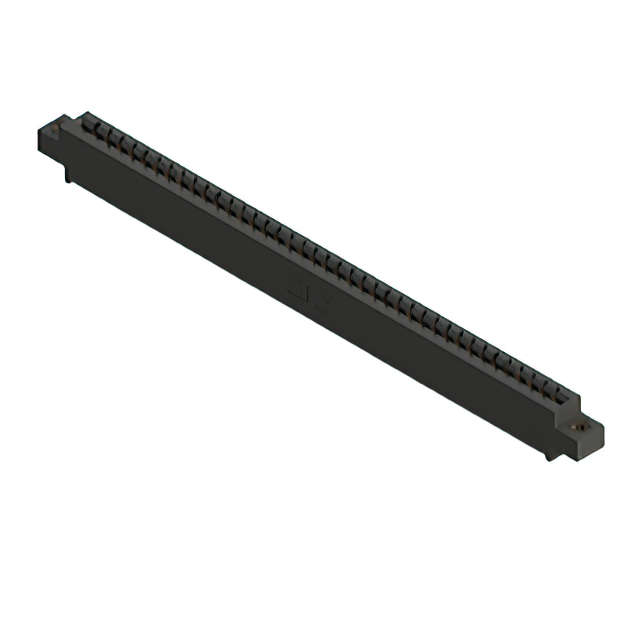

887-039-541-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
887-039-541-608
ActiveEDAC Inc.
CONN EDGE SGL FMALE 39POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-039-541-608 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 39 |
| Number of Positions/Bay/Row [custom] | 39 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
887-039 Series
...
| Part | Mounting Type | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Color | Number of Positions | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Pitch [x] | Pitch [x] | Gender | Material - Insulation | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Number of Rows | Read Out | Termination | Termination Rows | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | ||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder Eyelet(s) | 1 | Cantilever | 125 °C | -40 °C | ||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 4-40 Threaded Insert Top Mount Opening | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 4-40 Flush Mount Threaded Insert Top Opening | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 4-40 Threaded Insert Top Mount Opening | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Wire Wrap | 1 | Cantilever | 125 °C | -40 °C | ||||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | Side Mount Opening Unthreaded | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder Eyelet(s) | 1 | Cantilever | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | |||||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | ||
EDAC Inc. | Through Hole Right Angle | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | ||
EDAC Inc. | Through Hole | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Black | 39 | 0.156 in | 3.96 mm | Female | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 39 | 1 | Single | Solder | 1 | Cantilever | 125 °C | -40 °C | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
887-039 Series
39 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
