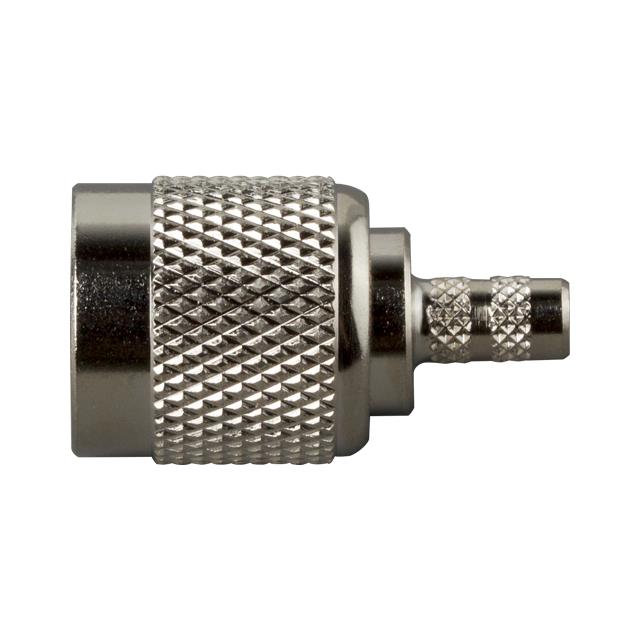

RFT-1202-C1

Active

RF Industries

TNC MALE CRIMP; 50 OHMS

Search across all available documentation for this part.

Active

RF Industries

TNC MALE CRIMP; 50 OHMS

Technical Specifications

Parameters and characteristics for this part

Specification	RFT-1202-C1

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polyoxymethylene (POM) Acetal
Frequency - Max [Max]	7 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	2 dB
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

Part	Insertion Loss	Contact Termination	Frequency - Max [Max]	Center Contact Plating	Mounting Type	Voltage Rating	Impedance	Shield Termination	Connector Style	Connector Type	Fastening Type	Body Material	Body Finish	Number of Ports	Housing Color	Center Contact Material	Dielectric Material
RF Industries RFT-1202-5	0.2 dB	Crimp	7 GHz	Gold	Free Hanging (In-Line)	500 V	50 Ohms	Crimp	TNC	Male Pin Plug	Snap-On	Brass	Nickel	1	Silver	Brass	Polyoxymethylene (POM) Acetal
RF Industries RFT-1202-C1	2 dB	Crimp	7 GHz	Gold	Free Hanging (In-Line)	500 V	50 Ohms	Crimp	TNC	Male Pin Plug		Brass	Nickel	1	Silver	Brass	Polyoxymethylene (POM) Acetal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
