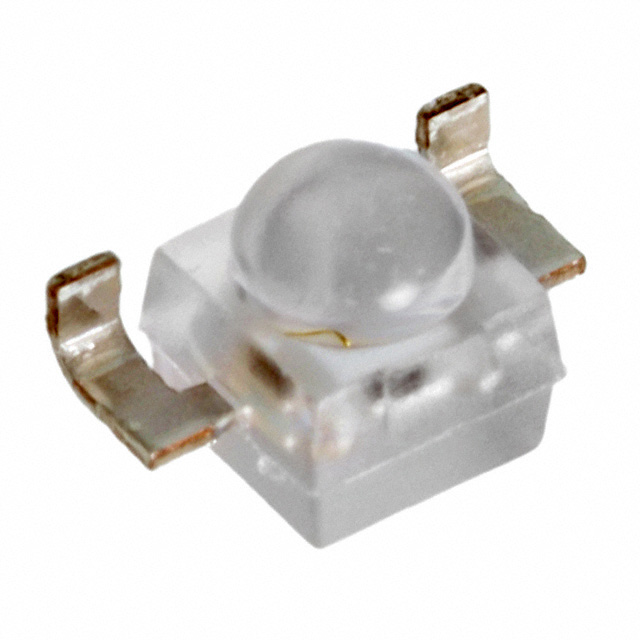

VSMB2943SLX01

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

EMITTER IR 940NM 100MA SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VSMB2943SLX01	VSMB2943 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle, Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Side View	Side View, Top View
Package / Case	2-SMD, Gull Wing	2-SMD, Gull Wing, 2-SMD, Z-Bend
Radiant Intensity (Ie) Min @ If [Min]	20 mW/sr	20 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	50 °	50 °
Voltage - Forward (Vf) (Typ)	1.35 V	1.35 V
Wavelength	940 nm	940 nm

EMITTER IR 940NM 100MA SMD

Part	Viewing Angle	Wavelength	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Package / Case	Type	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Mounting Type
Vishay Semiconductor Opto Division VSMB2943SLX01	50 °	940 nm	20 mW/sr	100 mA	2-SMD, Gull Wing	Infrared (IR)	Side View	85 °C	-40 °C	1.35 V	Surface Mount, Right Angle
Vishay Semiconductor Opto Division VSMB2943RGX01	50 °	940 nm	20 mW/sr	100 mA	2-SMD, Z-Bend	Infrared (IR)	Top View	85 °C	-40 °C	1.35 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.35V 100mA 20mW/sr @ 100mA 50° 2-SMD, Gull Wing
