131644-1

Active

TE Connectivity AMP Connectors

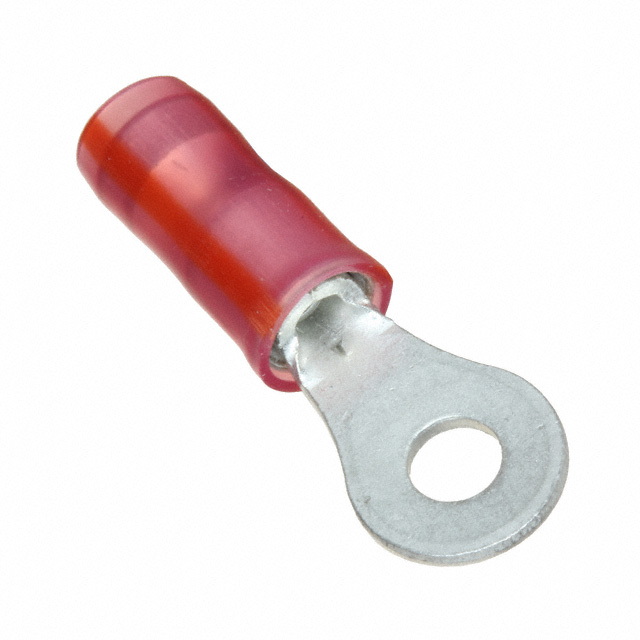

CONN RING CIRC 18-22AWG #4 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 18-22AWG #4 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	131644-1

Color	Red Stripe, Natural
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination, Insulation Restriction
Insulation	Insulated
Insulation Diameter [Max]	1.78 mm, 0.07 in
Insulation Diameter [Min]	0.049 ", 1.25 mm
Length - Overall [x]	0.866 "
Length - Overall [x]	22 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	4 Stud
Terminal Type	Circular
Termination	Crimp
Width - Outer Edges [y]	7.2 mm
Width - Outer Edges [y]	0.283 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

CONN RING CIRC 18-22AWG #4 CRIMP

Part	Contact Finish	Insulation	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Terminal Type	Features	Termination	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Color	Contact Material	Stud/Tab Size
TE Connectivity AMP Connectors 131644-1	Tin	Insulated	7.2 mm	0.283 in	0.866 "	22 mm	0.07 in, 1.78 mm	0.049 ", 1.25 mm	Circular	Insulation Restriction, Serrated Termination	Crimp	Free Hanging (In-Line)	22 AWG	17.5 AWG	Nylon, Polyamide (PA)	Natural, Red Stripe	Copper	4 Stud

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 4 Stud Circular 18-22 AWG Crimp

Technical documentation and resources

No documents available
