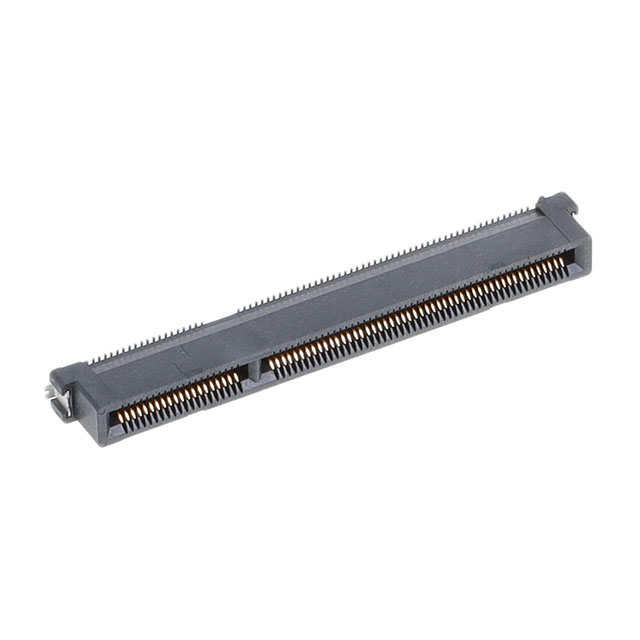

SE1014023111111

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 140P 0.026

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 140P 0.026

Technical Specifications

Parameters and characteristics for this part

Specification	SE1014023111111

Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.026 in
Pitch [x]	0.65 mm
Read Out	Dual
Termination	Solder

Part	Features	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Card Type	Gender	Color	Termination	Material - Insulation	Contact Type	Read Out	Number of Positions
Amphenol ICC (FCI) SE1014023111111	Board Guide Solder Retention	0.76 Ám	30 Áin	105 ░C	-55 °C	Gold	Copper Alloy	Surface Mount	2	0.026 in	0.65 mm	Non Specified - Dual Edge	Female	Black	Solder	Thermoplastic	Cantilever	Dual	140
Amphenol ICC (FCI) SE1010023111111	Board Guide	0.76 Ám	30 Áin	105 ░C	-55 °C	Gold	Copper Alloy	Surface Mount	2	0.026 in	0.65 mm	Non Specified - Dual Edge	Female	Black	Solder	Thermoplastic	Cantilever	Dual	100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

140 Position Female Connector Non Specified - Dual Edge Gold 0.026" (0.65mm) Black
