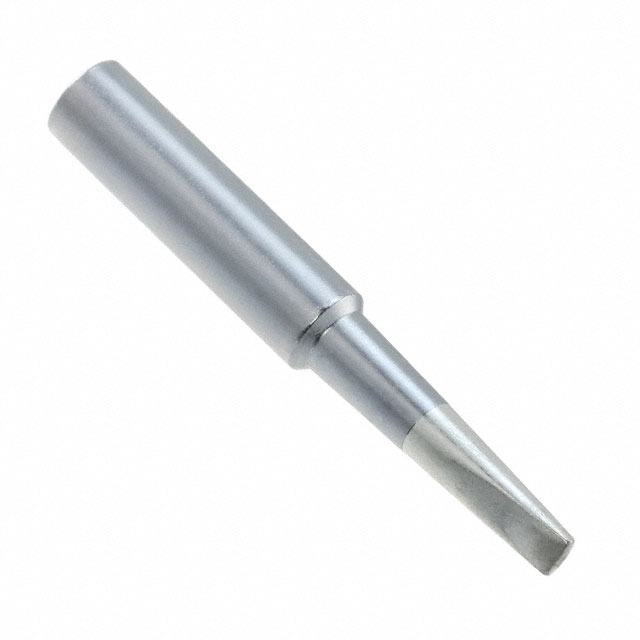

T18-DL32

Active

American Hakko Products, Inc.

TIP,3.2LD,FX-8801/907/900M/913

Search across all available documentation for this part.

Active

American Hakko Products, Inc.

TIP,3.2LD,FX-8801/907/900M/913

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TIP,3.2LD,FX-8801/907/900M/913

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	T18-DL32	T18-D Series

For Use With/Related Products	FX-601, FX-8805	FX-913, FX-907, FX-600, FX-900M, FX-8801, FX-601, FX-8805, 900M, 907, 913
Height [z]	0.039 in	0.02 - 0.039 in
Height [z]	1 mm	0.5 - 1 mm
Length	0.886 in	0.571 - 0.886 in
Length	22.5 mm	14.5 - 22.5 mm
Tip Shape	Chisel	Chisel
Tip Type	Soldering	Soldering
Width	-	1.6 - 2.4 mm
Width	-	0.063 - 0.094 in
Width	-	0.031 - 0.047 in
Width	-	0.8 - 1.19 mm
Width [x]	0.126 in	0.047 - 0.126 in
Width [x]	3.2 mm	1.2 - 3.2 mm

TIP,2.4D,FX-8801,907/900M/913,GL

Part	Tip Type	Width [y]	Width [y]	Height [z]	Height [z]	Tip Shape	Length	Length	For Use With/Related Products	Width [x]	Width [x]	Width	Width
American Hakko Products, Inc. T18-D24/P	Soldering	2.4 mm	0.094 in	0.02 in	0.5 mm	Chisel	0.571 in	14.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913
American Hakko Products, Inc. T18-DL32	Soldering			0.039 in	1 mm	Chisel	0.886 in	22.5 mm	FX-601, FX-8805	0.126 in	3.2 mm
American Hakko Products, Inc. T18-D12/P	Soldering			0.028 in	0.7 mm	Chisel	0.571 in	14.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913	0.047 in	1.2 mm
American Hakko Products, Inc. T18-DL12/P	Soldering			0.028 in	0.7 mm	Chisel	0.886 in	22.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913	0.047 in	1.2 mm
American Hakko Products, Inc. T18-DL12	Soldering			0.028 in	0.7 mm	Chisel	0.886 in	22.5 mm	900M, 907, 913, FX-600, FX-8801			0.047 in	1.19 mm
American Hakko Products, Inc. T18-D16/P	Soldering	1.6 mm	0.063 in	0.02 in	0.5 mm	Chisel	0.571 in	14.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913
American Hakko Products, Inc. T18-D08/P	Soldering			0.024 in	0.6 mm	Chisel	0.571 in	14.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913			0.031 in	0.8 mm
American Hakko Products, Inc. T18-D32/P	Soldering			0.02 in	0.5 mm	Chisel	0.571 in	14.5 mm	FX-600, FX-8801, FX-900M, FX-907, FX-913	0.126 in	3.2 mm
