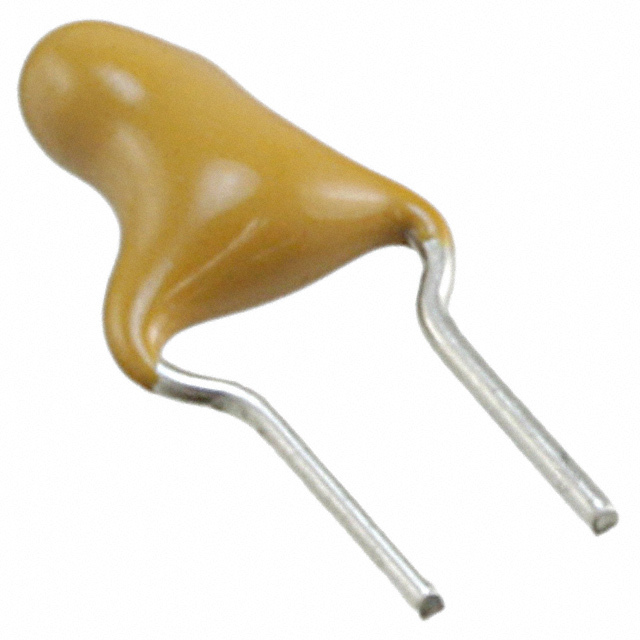

T355A334K035AT

Active

KEMET

CAPACITOR,330NF,35VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CAPACITOR,330NF,35VDC,10-% TOL,10+% TOL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	T355A334K035AT

Capacitance	0.33 µF
ESR (Equivalent Series Resistance)	15 Ohms
Features	General Purpose
Height - Seated (Max) [Max]	8.64 mm
Height - Seated (Max) [Max]	0.34 in
Lead Spacing	3.18 mm
Lead Spacing	0.125 in
Manufacturer Size Code	A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.175 in
Size / Dimension [diameter]	4.45 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Voltage - Rated	Manufacturer Size Code	Lead Spacing	Lead Spacing	Features	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET T355A225M020AT	20 V	A	3.18 mm	0.125 in	General Purpose	0.177 "	4.5 mm	Through Hole	7 Ohm	-55 °C	125 °C	20 %	Conformal Coated	8.6 mm	0.339 in	2.2 µF	Radial
KEMET T355A224K050AS	50 VDC	A	3.18 mm	0.125 in	General Purpose	0.177 "	4.5 mm	Through Hole		-55 °C	125 °C	10 %	Conformal Coated	8.6 mm	0.339 in	0.22 µF	Radial
KEMET T355A334K035AT	35 V	A	3.18 mm	0.125 in	General Purpose	0.175 in	4.45 mm	Through Hole	15 Ohms	-55 °C	125 °C	10 %	Conformal Coated			0.33 µF	Radial	8.64 mm	0.34 in
