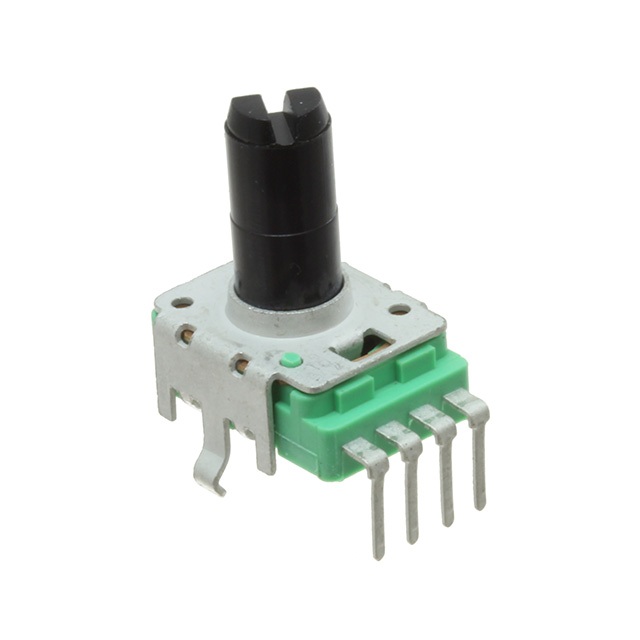

P110KH-0F20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P110KH-0F20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.27
		10	$ 1.99
		25	$ 1.79
		40	$ 1.72
		80	$ 1.65
		230	$ 1.58
		440	$ 1.30
		1440	$ 1.24
		5760	$ 1.03

Description

General part information

P110K Series

10k Ohm 1 Gang Linear Through Hole Potentiometer None 1.0 Kierros Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P110KH-0F20BR10K	P110K Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	15 mm
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	20 mm	20 mm
Actuator Length [z]	0.787 in	0.591 - 0.787 in
Actuator Type	Flatted	Knurled, Flatted
Adjustment Type	Top Adjustment	Top Adjustment, Side Adjustment
Built in Switch	False	False
Built in Switch	-	Detent
Bushing Thread	-	M9 x 0.75
Mounting Type	Through Hole	Through Hole
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.05 W	0.05 W
Power (Watts)	50 mW	50 mW
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	1 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [x]	15.9 mm	15.9 mm
Size - Body [x]	0.626 "	0.626 "
Size - Body [y]	0.472 in	0.472 in
Size - Body [y]	12 mm	12 mm
Taper	Linear	Linear, Logarithmic, Reverse Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P110K Series

POT 1K OHM 1/20W PLASTIC LINEAR

Part	Bushing Thread	Built in Switch	Number of Gangs	Rotation	Termination Style	Actuator Length [z]	Actuator Length	Power (Watts)	Power (Watts)	Resistive Material	Adjustment Type	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Taper	Resistance (Ohms)	Number of Turns	Actuator Type	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Length [z]	Mounting Type
TT Electronics/BI P110KH1-1Y15BR1K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	1 kOhms	1	Knurled	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0Y15BR50K	M9 x 0.75		1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	50 kOhms	1	Knurled	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0F25AR10K	M9 x 0.75		1	300 ░	Board Locks, PC Pins			0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic		1	Flatted	20 %	0.236 in	6 mm	10k	0.984 in	25 mm
TT Electronics/BI P110KH1-1F15BR1K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	1 kOhms	1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KH-1F20AR500K		Detent	1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic	500 kOhms	1	Flatted	20 %	0.236 in	6 mm				20 mm	Through Hole
TT Electronics/BI P110KV1-1F15BR100K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	100 kOhms	1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0Y20CR1K	M9 x 0.75		1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Reverse Logarithmic	1 kOhms	1	Knurled	20 %	0.236 in	6 mm				20 mm
TT Electronics/BI P110KH1-1F15BR200K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear		1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KH-0Y20BR10K			1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear		1	Knurled	20 %	0.236 in	6 mm	10k			20 mm	Through Hole
TT Electronics/BI P110KH-1F20AR500		Detent	1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic	500 Ohms	1	Flatted	20 %	0.236 in	6 mm				20 mm	Through Hole
