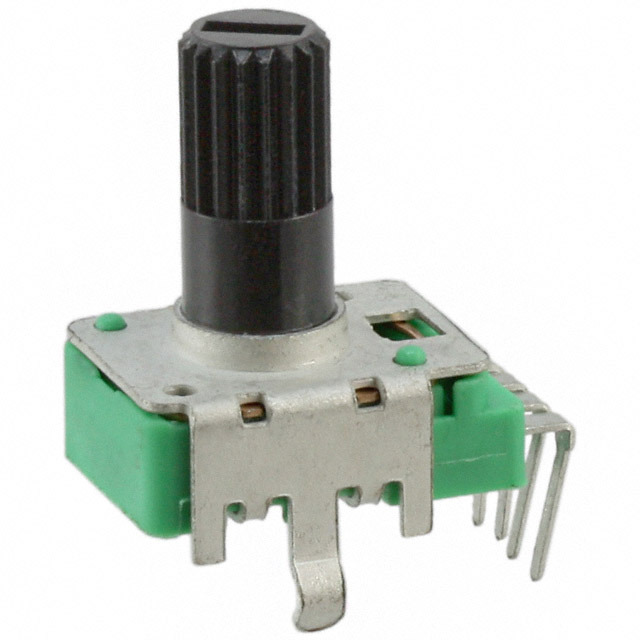

P110KH-0Y20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P110KH-0Y20BR10K

Active

TT Electronics/BI

POT 10K OHM 1/20W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P110KH-0Y20BR10K	P110K Series

Actuator Diameter [diameter]	0.236 in	0.236 in
Actuator Diameter [diameter]	6 mm	6 mm
Actuator Length	-	15 mm
Actuator Length	-	0.984 in
Actuator Length	-	25 mm
Actuator Length [z]	20 mm	20 mm
Actuator Length [z]	0.787 in	0.591 - 0.787 in
Actuator Type	Knurled	Knurled, Flatted
Adjustment Type	Top Adjustment	Top Adjustment, Side Adjustment
Built in Switch	False	False
Built in Switch	-	Detent
Bushing Thread	-	M9 x 0.75
Mounting Type	Through Hole	Through Hole
Number of Gangs	1	1
Number of Turns	1	1
Power (Watts)	0.05 W	0.05 W
Power (Watts)	50 mW	50 mW
Resistance (Ohms)	10k	10k
Resistance (Ohms)	-	1 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	300 ░	300 ░
Size - Body [x]	15.9 mm	15.9 mm
Size - Body [x]	0.626 "	0.626 "
Size - Body [y]	0.472 in	0.472 in
Size - Body [y]	12 mm	12 mm
Taper	Linear	Linear, Logarithmic, Reverse Logarithmic
Termination Style	Board Locks, PC Pins	Board Locks, PC Pins
Tolerance	20 %	20 %

P110K Series

POT 1K OHM 1/20W PLASTIC LINEAR

Part	Bushing Thread	Built in Switch	Number of Gangs	Rotation	Termination Style	Actuator Length [z]	Actuator Length	Power (Watts)	Power (Watts)	Resistive Material	Adjustment Type	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Taper	Resistance (Ohms)	Number of Turns	Actuator Type	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]	Actuator Length [z]	Mounting Type
TT Electronics/BI P110KH1-1Y15BR1K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	1 kOhms	1	Knurled	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0Y15BR50K	M9 x 0.75		1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	50 kOhms	1	Knurled	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0F25AR10K	M9 x 0.75		1	300 ░	Board Locks, PC Pins			0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic		1	Flatted	20 %	0.236 in	6 mm	10k	0.984 in	25 mm
TT Electronics/BI P110KH1-1F15BR1K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	1 kOhms	1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KH-1F20AR500K		Detent	1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic	500 kOhms	1	Flatted	20 %	0.236 in	6 mm				20 mm	Through Hole
TT Electronics/BI P110KV1-1F15BR100K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear	100 kOhms	1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KV1-0Y20CR1K	M9 x 0.75		1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Side Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Reverse Logarithmic	1 kOhms	1	Knurled	20 %	0.236 in	6 mm				20 mm
TT Electronics/BI P110KH1-1F15BR200K	M9 x 0.75	Detent	1	300 ░	Board Locks, PC Pins	0.591 in	15 mm	0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear		1	Flatted	20 %	0.236 in	6 mm
TT Electronics/BI P110KH-0Y20BR10K			1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Linear		1	Knurled	20 %	0.236 in	6 mm	10k			20 mm	Through Hole
TT Electronics/BI P110KH-1F20AR500		Detent	1	300 ░	Board Locks, PC Pins	0.787 in		0.05 W	50 mW	Conductive Plastic	Top Adjustment	15.9 mm	0.472 in	12 mm	0.626 "	Logarithmic	500 Ohms	1	Flatted	20 %	0.236 in	6 mm				20 mm	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.59
		10	$ 1.40
		25	$ 1.26
		40	$ 1.21
		80	$ 1.16
		230	$ 1.11
		440	$ 0.92
		1440	$ 0.87
		5760	$ 0.85

Description

General part information

P110K Series

10k Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Conductive Plastic 0.05W, 1/20W PC Pins, Board Locks
