346-013-558-158

Active

EDAC Inc.

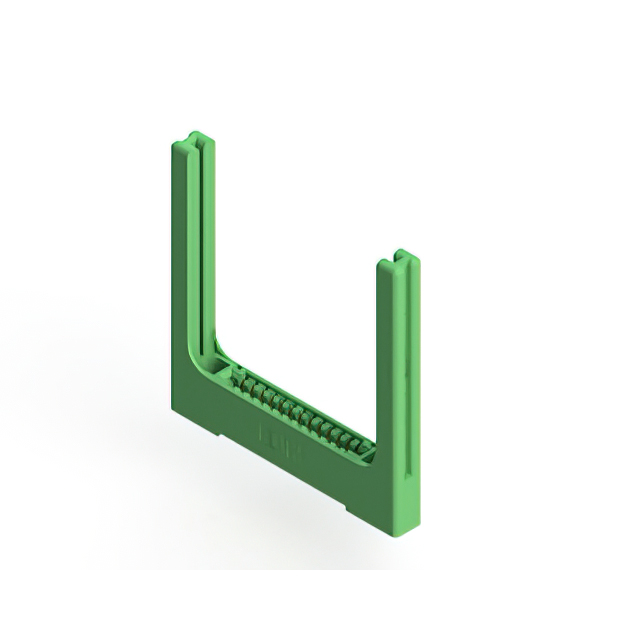

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 13 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

346-013-558-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 13 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-013-558-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions/Bay/Row [custom]	13
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

346-013 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Contact Material	Contact Finish	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Read Out	Color	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 346-013-559-101	0.125 in	3.18 mm	Through Hole Right Angle	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Wire Wrap	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13
EDAC Inc. 346-013-522-158	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 346-013-520-607	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	M3 Threaded Insert Top Mount Opening
EDAC Inc. 346-013-500-607	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Eyelet(s)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	M3 Threaded Insert Top Mount Opening
EDAC Inc. 346-013-559-604	0.125 in	3.18 mm	Through Hole Right Angle	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Wire Wrap	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Top Mount Opening Unthreaded		0.156 in	3.96 mm
EDAC Inc. 346-013-526-603	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Floating Bobbin Top Mount Opening		0.116 in	2.95 mm
EDAC Inc. 346-013-558-158	0.125 in	3.18 mm	Through Hole Right Angle	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Wire Wrap	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 346-013-520-612	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	Side Mount Opening Unthreaded				3.25 mm	0.128 in
EDAC Inc. 346-013-541-678	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Wire Wrap	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	4-40 Threaded Insert Top Mount Opening	Card Guides
EDAC Inc. 346-013-500-108	0.125 in	3.18 mm	Through Hole	1	Copper Alloy	Gold	Polyester Thermoplastic	-40 °C	105 ░C	13	1	Single	Green	Cantilever	10 Áin	0.25 Ám	Non Specified - Single Edge	Solder Eyelet(s)	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	13	4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.32
Newark	Each	1	$ 12.06
		100	$ 9.54
		250	$ 8.44
		500	$ 7.25
		1000	$ 5.67

Description

General part information

346-013 Series

13 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
