RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, JACK, TEE ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Technical Data Sheet EN

112455

Active

Amphenol RF

RF / COAXIAL ADAPTER, BNC, JACK, BNC, JACK, JACK, TEE ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsDrawing EN Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112455

Adapter Series	BNC to BNC, Dual
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Style	T-Shape

1124 Series

Part	Center Contact Material	Dielectric Material	Body Material	Connector Type	Mounting Feature	Housing Color	Impedance	Shield Termination	Fastening Type	Mounting Type	Contact Termination	Body Finish	Number of Ports	Frequency - Max [Max]	Insertion Loss	Connector Style	Voltage Rating	Mating Cycles	Center Contact Plating	Center Gender	Convert From (Adapter End)	Adapter Type	Convert To (Adapter End)	Conversion Type	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Style	Features
Amphenol RF 112408	Phosphor Bronze	Polypropylene (PP)	Zinc Die Cast	Female Socket Jack	Bulkhead	Silver White	50 Ohms	Solder	Bayonet Lock	Panel Mount Through Hole	Solder	Nickel	1	4 GHz	0.2 dB	BNC	500 V	500	Gold
Amphenol RF 112438	Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass		Bulkhead		75 Ohms		Bayonet Lock			Nickel		2 GHz					Gold	Female to Female	BNC Jack Female Socket	Jack to Jack	BNC Jack Female Socket	Same Series	BNC to BNC	85 °C	-40 °C	1 Connector 1 Lockwasher 1 Nut	Straight
Amphenol RF 112426	Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass	Female Socket Jack	Bulkhead - Rear Side Nut	Silver	50 Ohms	Solder Tag	Bayonet Lock		Solder Cup	Nickel	1	4 GHz	0.2 dB	BNC	500 V	500	Gold									1 Connector 1 Lockwasher 1 Nut 1 Solder Tag		Extended Insulation
Amphenol RF 112436	Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass		Bulkhead		75 Ohms		Bayonet Lock			Nickel		2 GHz					Gold	Female to Female	BNC Jack Female Socket	Jack to Jack	BNC Jack Female Socket	Same Series	BNC to BNC	85 °C	-40 °C	1 Connector 1 Gasket 1 Lockwasher 1 Nut	Straight
Amphenol RF 112447	Brass	Polyoxymethylene (POM) Acetal	Brass				50 Ohms		Bayonet Lock	Free Hanging (In-Line)		Nickel		4 GHz					Gold	Male to Male	BNC Plug Male Pin	Plug to Plug	BNC Plug Male Pin	Same Series	BNC to BNC	85 °C	-40 °C		Straight
Amphenol RF 112443	Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass		Bulkhead		50 Ohms		Bayonet Lock			Nickel		4 GHz					Gold	Female to Female	BNC Jack Female Socket	Jack to Jack	BNC Jack Female Socket	Same Series	BNC to BNC	85 °C	-40 °C	1 Connector 1 Lockwasher 1 Nut	Straight	Isolated
Amphenol RF 112451	Brass Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass				50 Ohms		Bayonet Lock	Free Hanging (In-Line) Right Angle		Nickel		4 GHz				500	Gold		BNC Jack Female Socket	Plug to Jack	BNC Plug Male Pin	Same Series	BNC to BNC	85 °C	-40 °C		Right Angle
Amphenol RF 112462	Brass Phosphor Bronze	Polyoxymethylene (POM) Acetal	Zinc Die Cast				75 Ohms		Bayonet Lock	Free Hanging (In-Line)		Nickel		4 GHz					Gold		BNC Plug Male Pin	Plug to Jack	BNC Jack Female Socket (2)	Same Series	BNC to BNC Dual	85 °C	-40 °C		T-Shape
Amphenol RF 112494	Phosphor Bronze	Polypropylene (PP)	Zinc Die Cast	Female Socket Jack	Bulkhead	Silver	75 Ohms	Solder	Bayonet Lock	Panel Mount Right Angle Through Hole	Solder	Nickel	1	4 GHz		BNC	500 V	500	Gold
Amphenol RF 112455	Phosphor Bronze	Polyoxymethylene (POM) Acetal	Brass				50 Ohms		Bayonet Lock	Free Hanging (In-Line)		Nickel		4 GHz					Gold	Female to Female	BNC Jack Female Socket	Jack to Jack	BNC Jack Female Socket (2)	Same Series	BNC to BNC Dual	85 °C	-40 °C		T-Shape

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 12.15
		10	$ 9.33
		25	$ 8.43
		50	$ 7.82
		100	$ 7.27
		250	$ 6.62
		500	$ 6.18
		1000	$ 5.78
Newark	Each	1	$ 12.21
		5	$ 11.74
		10	$ 11.27
		25	$ 9.80
		50	$ 9.49
		100	$ 9.17
		250	$ 8.13

Description

General part information

1124 Series

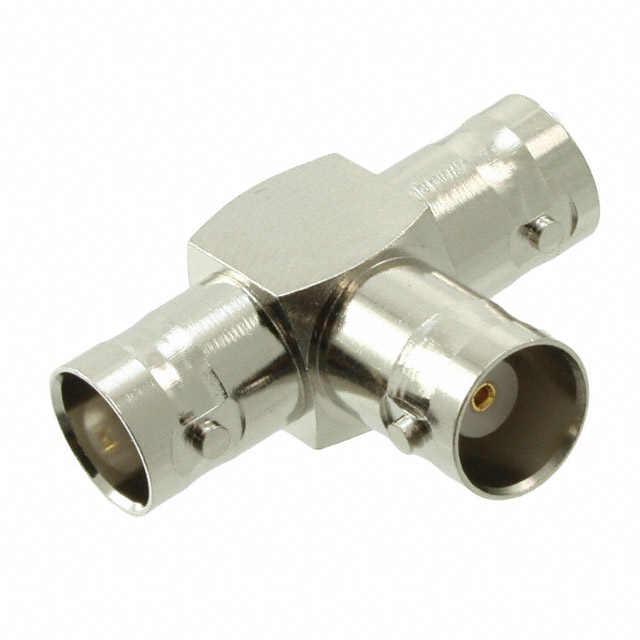

The 112455 is a BNC jack to 2 BNC jack Tee Adapter with gold-plated phosphor bronze contact. Body made up of brass with nickel-plated finish and Delrin insulator. This adapter is commonly used in applications requiring 2 dissimilar RF interfaces to be connected.
