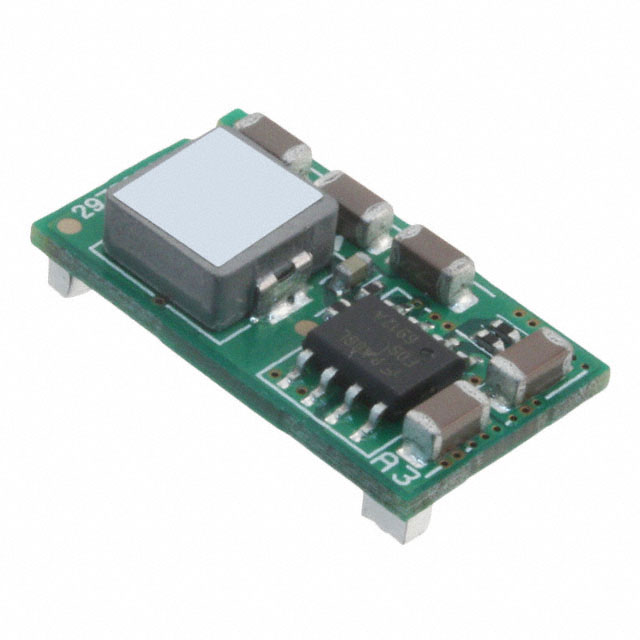

DNT12S0A0S05NFA

Obsolete

Delta Electronics

DC DC CONVERTER 0.75-5.5V 25W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 0.75-5.5V 25W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Control Features	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Applications	Voltage - Input (Min) [Min]	Efficiency
Delta Electronics DNT12S0A0R05NFA	Non-Isolated PoL Module	5 A	14 V	5-SIP Module	Through Hole	125 °C	-40 °C	25 W	1	0.75 V	5 V	Active Low Enable	OCP Remote On/Off UVLO	0.9 "	10.2 mm	22.9 mm	6.3 mm	0.4 "	0.25 in	ITE (Commercial)	8.3 V	92 %
Delta Electronics DNT12S0A0S05NFA	Non-Isolated PoL Module	5 A	14 V	5-SMD Module	Surface Mount	125 °C	-40 °C	25 W	1	0.75 V	5.5 V	Active Low Enable	OCP Remote On/Off UVLO	0.8 "	6.9 mm	20.3 mm	11.4 mm	0.27 "	0.45 in	ITE (Commercial)	8.3 V	92 %
Delta Electronics DNT12S0A0R03NFA	Non-Isolated PoL Module	3 A	14 V	5-SIP Module	Through Hole	125 °C	-40 °C	15 W	1	0.75 V	5 V	Active Low Enable	OCP Remote On/Off UVLO	0.9 "	10.2 mm	22.9 mm	6.3 mm	0.4 "	0.25 in	ITE (Commercial)	8.3 V	92.5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 5A 8.3V - 14V Input
