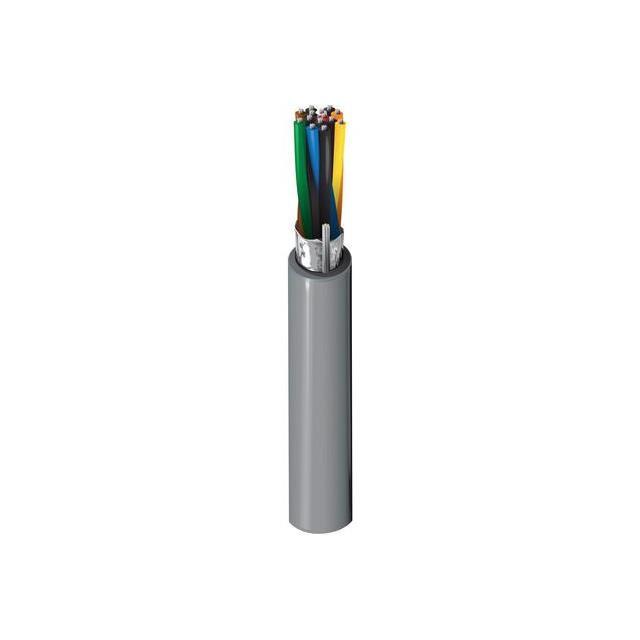

88107 0081000

Active

Belden Inc.

MULTI-PAIR 15CON 24AWG GRY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 15CON 24AWG GRY

Technical Specifications

Parameters and characteristics for this part

Specification	88107 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	15
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Conductor Insulation	Length	Length	Cable Type	Jacket Color	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Usage	Wire Gauge	Ratings	Conductor Material	Shield Coverage	Number of Conductors	Shield Type	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material
Belden Inc. 88107 0081000	Foam Fluorinated Ethylene-Propylene (FFEP)	1000 ft	304.8 m	Multi-Pair	Gray	300 V	0.305 in	7.75 mm	150 °C	-20 C	Drain Wire	Computer	24 AWG	UL Style CMP	Copper Tinned	100 %	15	Foil	Plenum Polyvinylidene Fluoride (PVDF)	32 AWG	7	0.356 mm	0.014 in	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 28.76

General part information

15 (7.5 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
