General part information

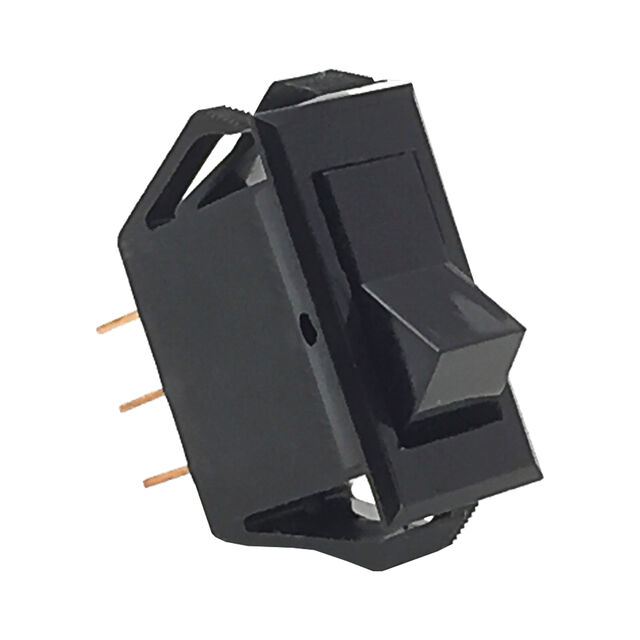

Toggle Switches Toggle
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | TA201-TB-B | TA201 Series |
|---|---|---|
| Actuator Marking | No Marking | No Marking, Vertical, ON OFF |
| Actuator Type | Concave (Standard V) | Concave (Standard V) |
| Approval Agency | UL, cUL | UL, cUL |
| Circuit | SPST | SPST |
| Color - Actuator/Cap | Black | Black, White |
| Current Rating (Amps) | 15 A | 15 A |
| Electrical Life | 50000 Cycles | 50000 Cycles |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Panel Cutout Dimensions [x] | 28.57 mm | 28.57 mm |
| Panel Cutout Dimensions [y] | 13.97 mm | 13.97 mm |
| Switch Function | On-Off | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V | 125 V |
Toggle Switches Toggle
| Part | Actuator Type | Switch Function | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Circuit | Mounting Type | Actuator Marking | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies TA201-TB-B | Concave (Standard V) | On-Off | Quick Connect - 0.250" (6.3mm) | 0 °C | 85 °C | 13.97 mm | 28.57 mm | cUL, UL | SPST | Panel Mount, Snap-In | No Marking | 15 A | Black | 125 V | 50000 Cycles |
Carling Technologies TA201-TW-B | Concave (Standard V) | On-Off | Quick Connect - 0.250" (6.3mm) | 0 °C | 85 °C | 13.97 mm | 28.57 mm | cUL, UL | SPST | Panel Mount, Snap-In | No Marking | 15 A | White | 125 V | 50000 Cycles |
Carling Technologies TA201-TB-B/ON-OFF | Concave (Standard V) | On-Off | Quick Connect - 0.250" (6.3mm) | 0 °C | 85 °C | 13.97 mm | 28.57 mm | cUL, UL | SPST | Panel Mount, Snap-In | ON OFF, Vertical | 15 A | Black | 125 V | 50000 Cycles |
