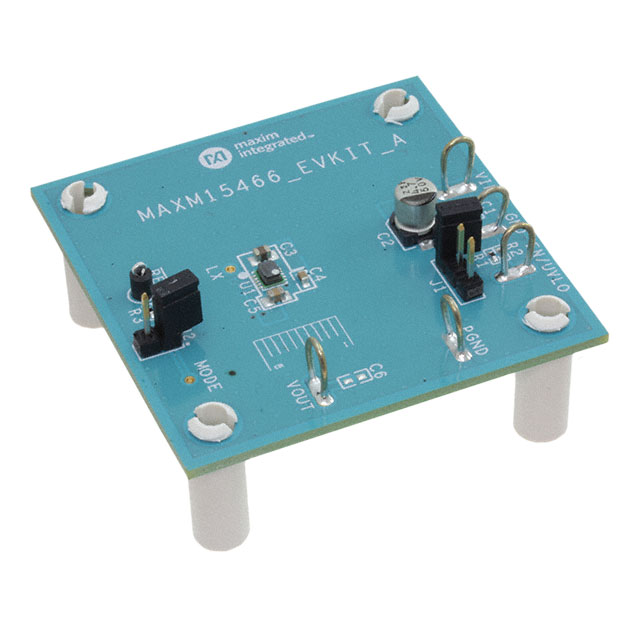

MAXM15466EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15466 BUCK MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM15466EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL MAXM15466 BUCK MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM15466EVKIT# | MAXM15466 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 300 mA | 300 mA |
| Current - Output (Max) | - | 300 mA |
| Features | - | OTP, UVLO, OCP |
| Frequency - Switching | 550 kHz | 550 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 1.5 mm |
| Size / Dimension | - | 0.1 in |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 2.6 mm |
| Size / Dimension | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM15466 | MAXM15466 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 8.5 V | 8.5 V |
| Voltage - Output | 5 V | 5 V |
| Voltage - Output 1 | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 37.20 | |
MAXM15466 Series
EVAL MAXM15466 BUCK MOD
| Part | Regulator Topology | Board Type | Frequency - Switching | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Main Purpose | Current - Output | Utilized IC / Part | Supplied Contents | Outputs and Type | Outputs and Type | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Applications | Voltage - Input (Max) [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Mounting Type | Type | Package / Case | Features | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM15466EVKIT# | Buck | Fully Populated | 550 kHz | 5 V | 8.5 V | 42 V | DC/DC, Step Down | 300 mA | MAXM15466 | Board(s) | Non-Isolated | 1 | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15466AMB+T | 300 mA | 125 °C | -40 °C | 1 | ITE (Commercial) | 42 V | 5 V | 4.5 V | Surface Mount | Non-Isolated PoL Module | 10-SMD Module | OCP, OTP, UVLO | 10-eMGA | 2.6 | 3 | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM15466AMB+ | 300 mA | 125 °C | -40 °C | 1 | ITE (Commercial) | 42 V | 5 V | 4.5 V | Surface Mount | Non-Isolated PoL Module | 10-SMD Module | OCP, OTP, UVLO | 10-eMGA | 2.6 | 3 | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm |
Description
General part information
MAXM15466 Series
MAXM15466 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
