VLAS121016J350RP

Active

KYOCERA AVX

LOW CLAMP AUTOMOTIVE SERIES VAR

Search across all available documentation for this part.

Active

KYOCERA AVX

LOW CLAMP AUTOMOTIVE SERIES VAR

Technical Specifications

Parameters and characteristics commom to parts in this series

LOW CLAMP AUTOMOTIVE SERIES VAR

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Varistor Voltage (Max) [Max]	Energy	Maximum AC Volts [Max]	Maximum DC Volts [Max]	Varistor Voltage (Typ)	Package / Case	Package / Case	Current - Surge	Varistor Voltage (Min) [Min]	Number of Circuits	Capacitance @ Frequency	Grade	Qualification
KYOCERA AVX VLAS121016J350DP	125 °C	-55 °C	Surface Mount, MLCV	21.84 V	1.6 J	11 V	16 V	19.5 V	1210	3225 Metric	500 A	17.16 V	1	5000 pF	Automotive	AEC-Q200
KYOCERA AVX VLAS121016J350RP	125 °C	-55 °C	Surface Mount, MLCV	21.84 V	1.6 J	11 V	16 V	19.5 V	1210	3225 Metric	500 A	17.16 V	1	5000 pF	Automotive	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.97
	Digi-Reel®	1	$ 0.97
	Tape & Reel (TR)	2000	$ 0.42

General part information

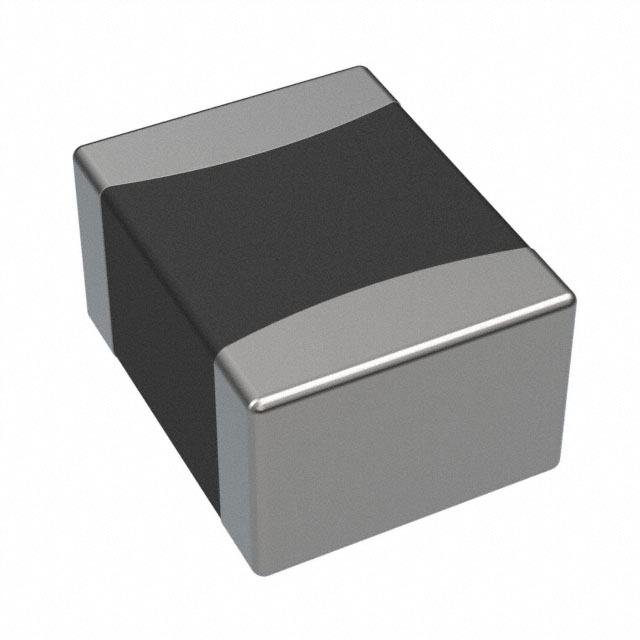

19.5 V 500 A Varistor 1 Circuit Surface Mount, MLCV 1210 (3225 Metric)
