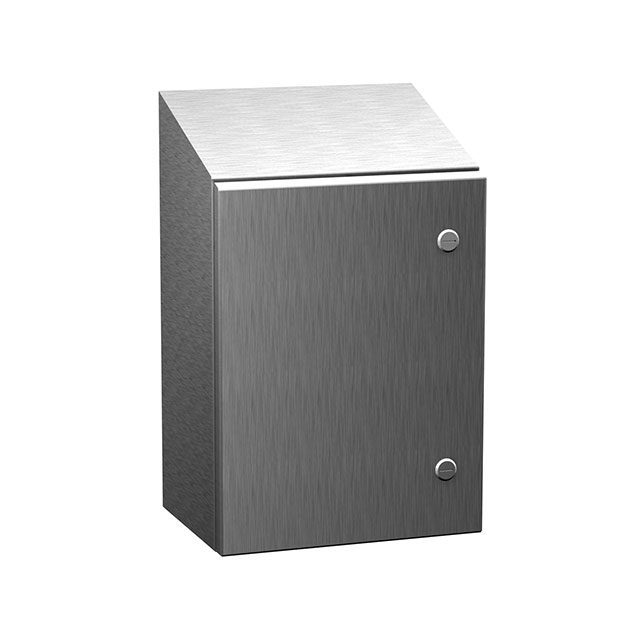

ST363016SS

Active

Hammond Manufacturing

ECLIPSE SLOPED TOP SERIES, 304 STAINLESS STEEL

Search across all available documentation for this part.

Active

Hammond Manufacturing

ECLIPSE SLOPED TOP SERIES, 304 STAINLESS STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	ST363016SS

Area (L x W)	8090 cm²
Area (L x W)	1254 in²
Color	Natural
Container Type	Box
Design	Hinged Door, Slanted Top
Features	Stainless Steel Hinges
Height [z]	16 in
Height [z]	406.4 mm
Ratings	NEMA 12, UL-508, IP66, NEMA 13, NEMA 4, NEMA 4X, NEMA 3R
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Size / Dimension [x]	1061.72 mm
Size / Dimension [x]	41.8 "
Size / Dimension [y]	30 "
Size / Dimension [y]	762 mm
Thickness	14 Gauge
Weight	48.1 kg
Weight	106 lbs

ECLIPSE SLOPED TOP SERIES, 304 STAINLESS STEEL

Part	Ratings	Weight	Weight	Area (L x W)	Area (L x W)	Design	Shipping Info	Container Type	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Thickness	Height [z]	Height [z]
Hammond Manufacturing ST363016SS	IP66, NEMA 12, NEMA 13, NEMA 3R, NEMA 4, NEMA 4X, UL-508	48.1 kg	106 lbs	8090 cm²	1254 in²	Hinged Door, Slanted Top	Drop shipped from the Manufacturer's Warehouse	Box	Natural	1061.72 mm	30 "	762 mm	41.8 "	Stainless Steel Hinges	14 Gauge	16 in	406.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 2869.73

General part information

Box Metal, Stainless Steel Natural Hinged Door, Slanted Top 41.800" L x 30.000" W (1061.72mm x 762.00mm) X 16.000" (406.40mm)
