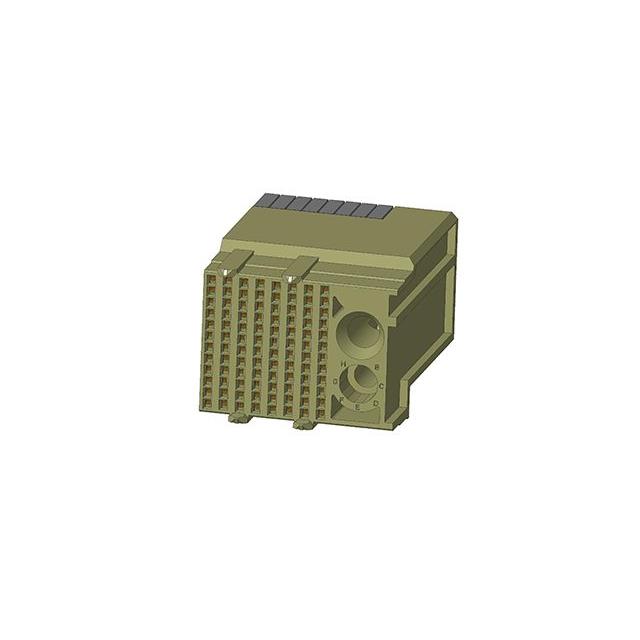

Specification	10135286-10JLF

Color	Natural
Connector Style	Guide Left, Airmax VS2™
Connector Type	Receptacle, Female Sockets
Connector Usage	Backplane
Contact Finish	Gold
Current Rating (Per Contact)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Through Hole, Board Edge
Number of Columns	8
Number of Positions	96
Number of Positions Loaded	All
Number of Rows	12
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.079 in
Termination	Press-Fit
Voltage Rating	30 V
Voltage Rating (Type)	DC, AC

10135286 Series

Part	Current Rating (Per Contact)	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Connector Usage	Contact Finish	Mounting Type	Number of Positions	Number of Columns	Color	Pitch	Number of Rows	Connector Style	Termination	Connector Type	Number of Positions Loaded
Amphenol ICC (FCI) 10135286-10JLF	500 mA	UL94 V-0	-55 °C	85 °C	30 V	AC DC	Backplane	Gold	Board Edge Right Angle Through Hole	96	8	Natural	0.079 in	12	Airmax VS2™ Guide Left	Press-Fit	Female Sockets Receptacle	All
Amphenol ICC (FCI) 10135286-10PLF
Amphenol ICC (FCI) 10135286-10ALF
