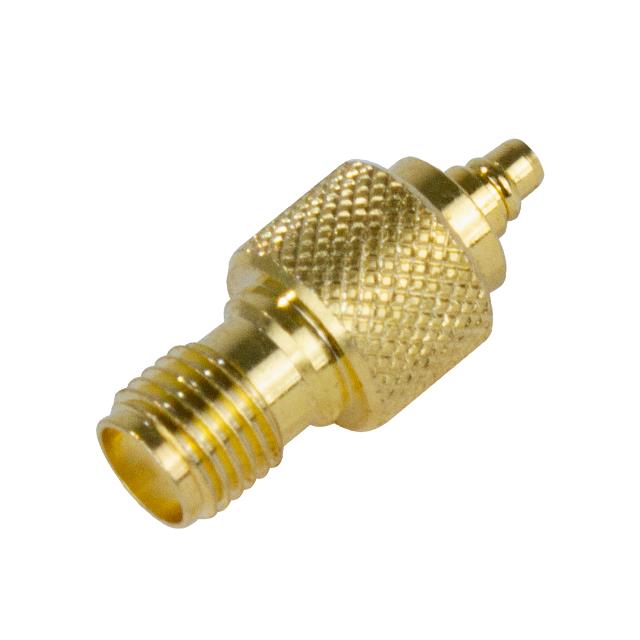

RSA-3408-1

Active

RF Industries

SMA FEMALE-MMCX MALE

Search across all available documentation for this part.

Active

RF Industries

SMA FEMALE-MMCX MALE

Technical Specifications

Parameters and characteristics for this part

Specification	RSA-3408-1

Adapter Series	SMA to MMCX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	MMCX Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

SMA FEMALE-MMCX MALE

Part	Center Contact Plating	Impedance	Frequency - Max [Max]	Convert From (Adapter End)	Convert To (Adapter End)	Style	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Conversion Type	Body Material	Center Contact Material	Mounting Type	Dielectric Material	Fastening Type	Body Finish	Adapter Type
RF Industries RSA-3408-1	Gold	50 Ohms	6000 MHz	MMCX Plug, Male Pin	Female Socket, SMA Jack	Straight	-65 ░C	165 °C	SMA to MMCX	Between Series	Brass	Beryllium Copper	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Snap-On, Threaded	Gold	Plug to Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector MMCX Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
