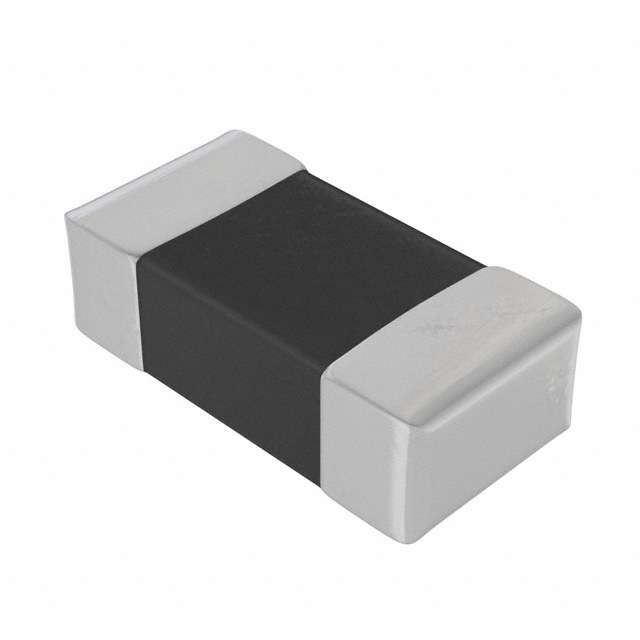

MLVB04V18C003

Active

Eaton - Electronics Division

VARISTOR 28V 0402

Search across all available documentation for this part.

Active

Eaton - Electronics Division

VARISTOR 28V 0402

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MLVB04V18C003	MLVB06 Series

Capacitance @ Frequency	3 pF	0.5 - 270 pF
Current - Surge	-	30 A
Energy	-	0.1 J
Maximum AC Volts	-	4 - 20 V
Maximum DC Volts [Max]	18 V	5.5 - 26 V
Mounting Type	Surface Mount, MLCV	Surface Mount, Surface Mount, MLCV
Number of Circuits	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0402 (1005 Metric)	0603 (1608 Metric), 0402 (1005 Metric)
Varistor Voltage (Max) [Max]	34 V	9.6 - 120 V
Varistor Voltage (Min) [Min]	22 V	6.4 - 90 V
Varistor Voltage (Typ)	28 V	8 - 105 V

VARISTOR 16.5V 30A 0603

Part	Current - Surge	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Circuits	Varistor Voltage (Max) [Max]	Energy	Package / Case	Capacitance @ Frequency	Varistor Voltage (Min) [Min]	Varistor Voltage (Typ)
Eaton - Electronics Division MLVA06V09C210-R	30 A	9 V	7 V	Surface Mount	85 °C	-40 °C	1	21.5 V	0.1 J	0603 (1608 Metric)	210 pF	11.5 V	16.5 V
Eaton - Electronics Division MLVA06V18C130	30 A	18 V	14 V	Surface Mount, MLCV	85 °C	-40 °C	1	26.4 V	0.1 J	0603 (1608 Metric)	130 pF	17.6 V	22 V
Eaton - Electronics Division MLVA06V14C150	30 A	14 V	11 V	Surface Mount, MLCV	85 °C	-40 °C	1	21.6 V	0.1 J	0603 (1608 Metric)	150 pF	14.4 V	18 V
Eaton - Electronics Division MLVB04V18C003		18 V		Surface Mount, MLCV	85 °C	-40 °C	1	34 V		0402 (1005 Metric)	3 pF	22 V	28 V
Eaton - Electronics Division MLVB06V18C0R5		18 V		Surface Mount, MLCV	85 °C	-40 °C	1	120 V		0603 (1608 Metric)	0.5 pF	90 V	105 V
Eaton - Electronics Division MLVA06V18C150-R	30 A	18 V	14 V	Surface Mount	85 °C	-40 °C	1	33 V	0.1 J	0603 (1608 Metric)	150 pF	23 V	28 V
Eaton - Electronics Division MLVB06V18C001		18 V		Surface Mount, MLCV	85 °C	-40 °C	1	60 V		0603 (1608 Metric)	1 pF	46 V	53 V
Eaton - Electronics Division MLVB06V18C003		18 V		Surface Mount, MLCV	85 °C	-40 °C	1	34 V		0603 (1608 Metric)	3 pF	22 V	28 V
Eaton - Electronics Division MLVB04V09C005		9 V		Surface Mount, MLCV	85 °C	-40 °C	1	17 V		0402 (1005 Metric)	5 pF	11 V	14 V
Eaton - Electronics Division MLVA06V26C100	30 A	26 V	20 V	Surface Mount, MLCV	85 °C	-40 °C	1	37.2 V	0.1 J	0603 (1608 Metric)	100 pF		31 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

28 V Varistor 1 Circuit Surface Mount, MLCV 0402 (1005 Metric)
