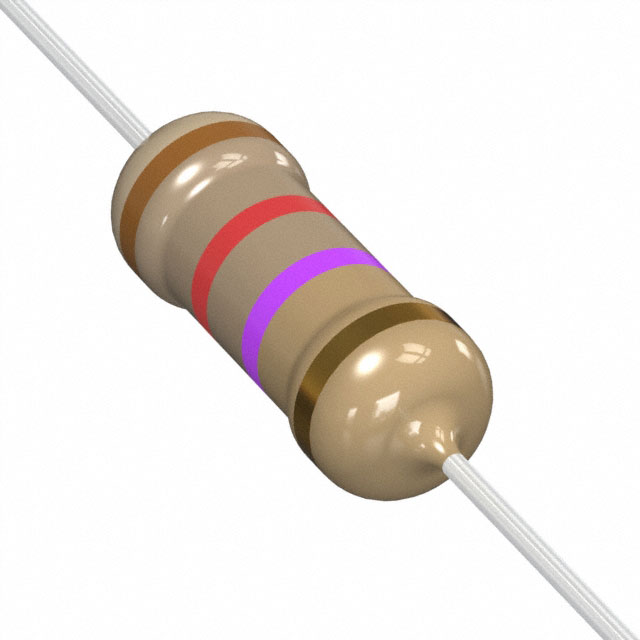

RGP0207CHJ120M

Active

TE Connectivity Passive Product

RES 120M OHM 5% 1/4W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 120M OHM 5% 1/4W AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Supplier Device Package	Features	Number of Terminations	Tolerance	Composition	Temperature Coefficient	Package / Case	Power (Watts)	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]
TE Connectivity Passive Product RGP0207CHJ33M	155 °C	-55 °C	33 MOhms	Axial	High Voltage	2	1 %	Thick Film	350 ppm/°C	Axial	0.25 W	250 mW	0.098 in	0.256 "	2.5 mm	6.5 mm
TE Connectivity Passive Product RGP0207CHJ120M	155 °C	-55 °C	120 MOhms	Axial	High Voltage	2	1 %	Thick Film	350 ppm/°C	Axial	0.25 W	250 mW	0.098 in	0.256 "	2.5 mm	6.5 mm
TE Connectivity Passive Product RGP0207CHJ130M	155 °C	-55 °C	130 MOhms	Axial	High Voltage	2	1 %	Thick Film	350 ppm/°C	Axial	0.25 W	250 mW	0.098 in	0.256 "	2.5 mm	6.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

120 MOhms ±1% 0.25W, 1/4W Through Hole Resistor Axial High Voltage Thick Film
