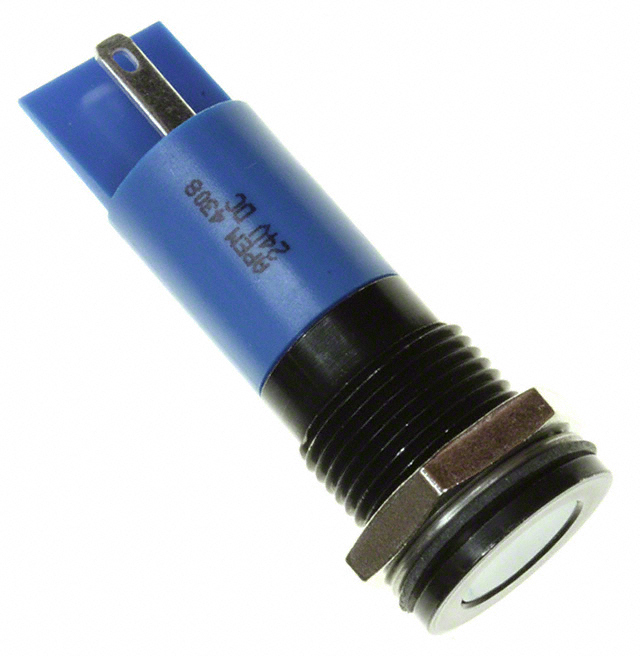

Q14F1BXXB24E
ActiveAPEM
INDICATOR 24V 14MM FLUSH BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q14F1BXXB24E
ActiveAPEM
INDICATOR 24V 14MM FLUSH BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q14F1BXXB24E |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd |
| Panel Cutout Dimensions | 13.97 mm |
| Panel Cutout Dimensions | 0.55 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 100 ° |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 17.52 | |
Description
General part information
Q14F1BXXB Series
LED Panel Indicator Blue Diffused 100° 24V 20mA Quick Connect - 0.110" (2.8mm)
Documents
Technical documentation and resources
