917978-1

Active

TE Connectivity AMP Connectors

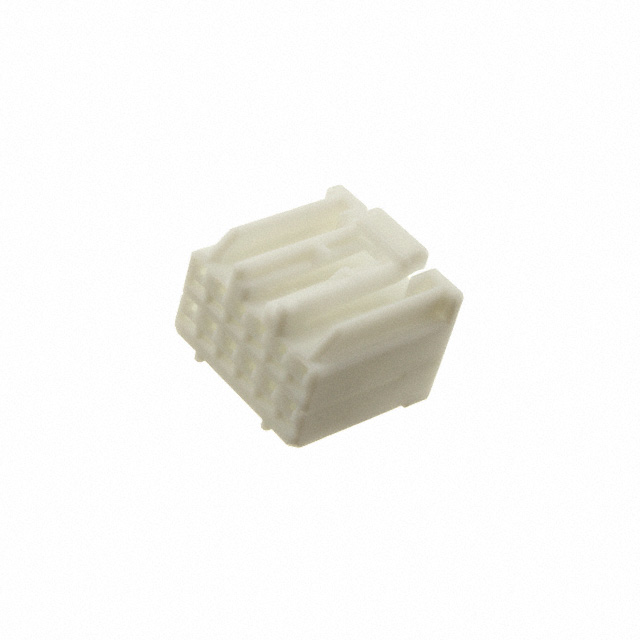

CONN PLUG HSG 12POS 3.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 12POS 3.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	917978-1	917978 Series

Color	White	Yellow, White, Gray
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	12	12
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Pitch [x]	3.5 mm	3.5 mm
Pitch [x]	0.138 in	0.138 in
Row Spacing	0.205 in	0.205 in
Row Spacing	5.2 mm	5.2 mm

CONN PLUG HSG 12POS 3.50MM

Part	Connector Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Note	Mounting Type	Row Spacing	Row Spacing	Number of Rows	Number of Positions	Insulation Material	Contact Termination	Fastening Type	Pitch [x]	Pitch [x]
TE Connectivity AMP Connectors 917978-7	Plug	Yellow	-30 ░C	105 ░C	Female Socket	Contacts Not Included	Free Hanging (In-Line)	0.205 in	5.2 mm	2	12	Polybutylene Terephthalate (PBT)	Crimp	Latch Lock	3.5 mm	0.138 in
TE Connectivity AMP Connectors 917978-1	Plug	White	-30 ░C	105 ░C	Female Socket	Contacts Not Included	Free Hanging (In-Line)	0.205 in	5.2 mm	2	12	Polybutylene Terephthalate (PBT)	Crimp	Latch Lock	3.5 mm	0.138 in
TE Connectivity AMP Connectors 6-917978-6	Plug	Gray			Female Socket	Contacts Not Included	Free Hanging (In-Line)	0.205 in	5.2 mm	2	12		Crimp	Latch Lock	3.5 mm	0.138 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Rectangular Connectors - Housings Plug White 0.138" (3.50mm)
