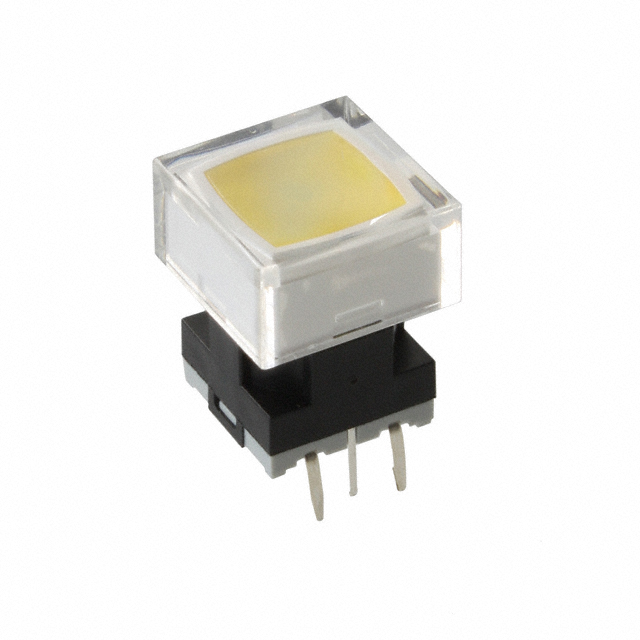

Specification	JB15HBPE-JE

Actuator Height off PCB (Vertical)	14.7 mm
Actuator Material	Polybutylene Terephthalate (PBT), Glass Filled
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Color	Yellow
Contact Rating (Current)	0.125 A
Features	Process Sealed
Illumination	Illuminated
Illumination Type	LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Through Hole
Operating Force	265 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Outline Length	10 mm
Outline Width	10 mm
Switch Function	Off-Mom
Switch Travel	0.3 mm
Termination Style	PC Pin

JB15HBPE Series

Part	Actuator Height off PCB (Vertical)	Circuit	Illumination Voltage (Nominal)	Operating Temperature (Max)	Operating Temperature (Min)	Actuator Type	Ingress Protection Description	Ingress Protection IP Rating	Switch Function	Operating Force	Outline Width	Outline Length	Termination Style	Contact Rating (Current)	Features	Illumination	Mounting Type	Color	Illumination Type	Actuator Orientation	Actuator Material	Mechanical Life (Cycles)	Switch Travel
NKK Switches JB15HBPE-BB	14.7 mm	SPST-NO	2 VDC	70 °C	-25 °C	Square Button	Dust Tight Waterproof	IP67	Off-Mom	265 gf	10 mm	10 mm	PC Pin	0.125 A	Process Sealed	Illuminated	Through Hole	Yellow	LED	Top Actuated	Glass Filled Polybutylene Terephthalate (PBT)	1000000 Cycles	0.3 mm
NKK Switches JB15HBPE-JB	14.7 mm	SPST-NO	2 VDC	70 °C	-25 °C	Square Button	Dust Tight Waterproof	IP67	Off-Mom	265 gf	10 mm	10 mm	PC Pin	0.125 A	Process Sealed	Illuminated	Through Hole	Yellow	LED	Top Actuated	Glass Filled Polybutylene Terephthalate (PBT)	1000000 Cycles	0.3 mm
NKK Switches JB15HBPE-JE	14.7 mm	SPST-NO	2 VDC	70 °C	-25 °C	Square Button	Dust Tight Waterproof	IP67	Off-Mom	265 gf	10 mm	10 mm	PC Pin	0.125 A	Process Sealed	Illuminated	Through Hole	Yellow	LED	Top Actuated	Glass Filled Polybutylene Terephthalate (PBT)	1000000 Cycles	0.3 mm
NKK Switches JB15HBPE-BE	14.7 mm	SPST-NO	2 VDC	70 °C	-25 °C	Square Button	Dust Tight Waterproof	IP67	Off-Mom	265 gf	10 mm	10 mm	PC Pin	0.125 A	Process Sealed	Illuminated	Through Hole	Yellow	LED	Top Actuated	Glass Filled Polybutylene Terephthalate (PBT)	1000000 Cycles	0.3 mm
NKK Switches JB15HBPE-BC	14.7 mm	SPST-NO	2 VDC	70 °C	-25 °C	Square Button	Dust Tight Waterproof	IP67	Off-Mom	265 gf	10 mm	10 mm	PC Pin	0.13 A		Illuminated	Through Hole	Yellow	LED	Top Actuated	Glass Filled Polybutylene Terephthalate (PBT)	1000000 Cycles	0.3 mm
