Description
General part information
SE120 Series

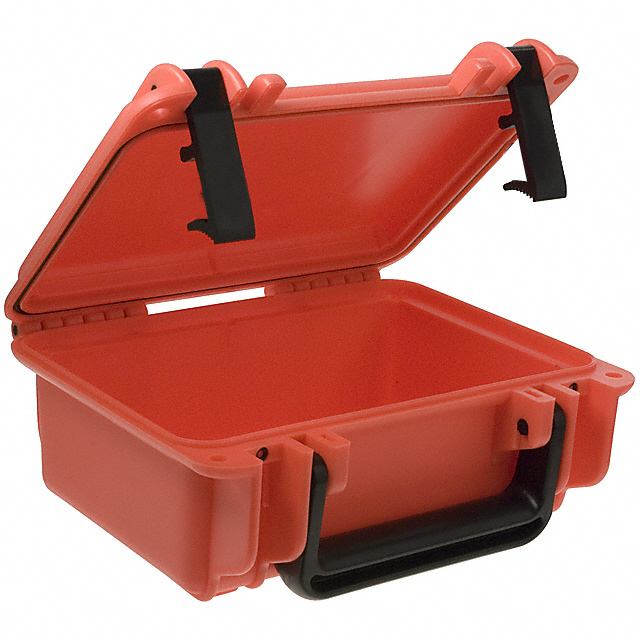

Case Plastic, Polypropylene Orange Equipment Case, Hinged Lid 8.700" L x 7.450" W (220.98mm x 189.23mm) X 3.891" (98.83mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | SE120,OR |
|---|---|
| Area (L x W) | 64.8 in² |
| Color | Orange |
| Container Type | Case |
| Design | Hinged Lid, Equipment Case |
| Features | Watertight, Airtight, Watertight/Airtight |
| Height | 3.891 in |
| Material | Polypropylene, Plastic |
| Material Flammability Rating | UL-HB75 |
| Ratings | IP67, MIL-STD 810F-512.4 |
| Size / Dimension Length | 8.7 in |
| Size / Dimension Width | 7.45 in |
| Weight | 1.5 lbs |
