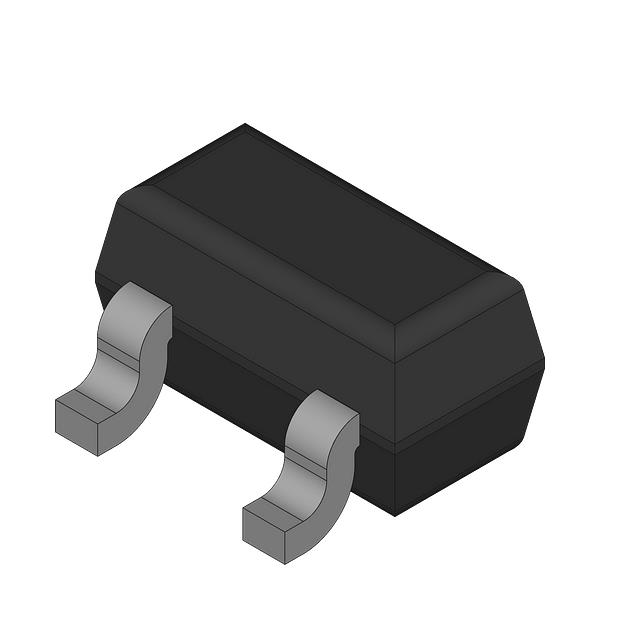

BAS70-04TE6327

Active

Infineon Technologies

DIODE SCHOTTKY

Deep-Dive with AI

Search across all available documentation for this part.

BAS70-04TE6327

Active

Infineon Technologies

DIODE SCHOTTKY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BAS70-04TE6327

null

BAS70 Series

Part	Voltage - Forward (Vf) (Max) @ If	Speed	Speed	Operating Temperature - Junction	Current - Reverse Leakage @ Vr	Package / Case	Supplier Device Package	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Technology	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Grade	Qualification	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Capacitance @ Vr, F
Infineon Technologies BAS70-04WE6327	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-70 SOT-323	PG-SOT323-3-1	1 Pair Series Connection	70 mA	Schottky	100 ps	70 V	Surface Mount
Infineon Technologies BAS70-06B5000	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	1 Pair Common Anode	70 mA	Schottky		70 V	Surface Mount	Automotive	AEC-Q101
Infineon Technologies BAS70-05B5003	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	1 Pair Common Cathode	70 mA	Schottky		70 V	Surface Mount	Automotive	AEC-Q101
Infineon Technologies BAS70-06B5003	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	1 Pair Common Anode	70 mA	Schottky		70 V	Surface Mount	Automotive	AEC-Q101
Infineon Technologies BAS70E6327HTSA1	1 V	Any Speed	200 mA		100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23			Schottky	100 ps	70 V	Surface Mount			-55 °C	125 °C	70 mA	2 pF
Infineon Technologies BAS70-04TE6327
Infineon Technologies BAS70-04B5000	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	1 Pair Series Connection	70 mA	Schottky		70 V	Surface Mount	Automotive	AEC-Q101
Infineon Technologies BAS70-05B5000	1 V	Any Speed	200 mA	150 ¯C	100 nA	SC-59 SOT-23-3 TO-236-3	PG-SOT23-3-3	1 Pair Common Cathode	70 mA	Schottky		70 V	Surface Mount	Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10377	$ 0.03

Description

General part information

BAS70 Series

Diode Array

Documents

Technical documentation and resources

No documents available
