FFP.3S.312.CLAC62

Active

LEMO

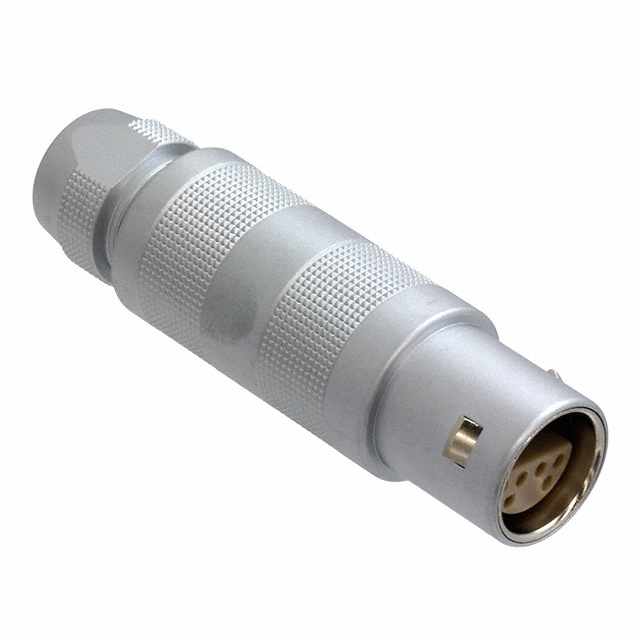

CONN CIRC PLUG 12P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFP.3S.312.CLAC62

Active

LEMO

CONN CIRC PLUG 12P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 115.30

Description

General part information

FFP.3S Series

12 Position Circular Connector Plug, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FFP.3S.312.CLAC62	FFP.3S Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	9.8 - 10.5 mm
Cable Opening	-	0.394 in
Cable Opening	-	0.165 in
Cable Opening	-	4.2 mm
Cable Opening	-	0.102 in
Cable Opening	-	2.6 mm
Cable Opening	-	7.2 mm
Cable Opening	-	0.283 in
Cable Opening	-	5.8 mm
Cable Opening	-	0.228 in
Cable Opening	-	0.386 - 0.413 in
Color	Silver	Silver
Connector Type	Male Pins, Plug, Female Sockets	Male Pins, Plug, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Current Rating (Amps)	8 A	7 - 23 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell, Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	12	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	312	302 - 316
Shielding	Shielded	Shielded

FFP.3S Series

CONN CIRC PLUG 12P GOLD SLDR CUP

Part	Mounting Type	Number of Positions	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Material Flammability Rating	Orientation	Primary Material	Features	Color	Fastening Type	Contact Material	Ingress Protection	Connector Type	Current Rating (Amps)	Shielding	Backshell Material, Plating	Shell Finish	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [custom]
LEMO FFP.3S.312.CLAC62	Free Hanging (In-Line)	12	Brass	-55 °C	250 °C	312	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	8 A	Shielded	Brass, Chrome	Chrome	Gold
LEMO FFP.3S.302.CLAC10	Free Hanging (In-Line)	2	Brass	-55 °C	250 °C	302	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	23 A	Shielded	Brass, Chrome	Chrome	Gold	10 mm	0.394 in
LEMO FFP.3S.304.CLAC42	Free Hanging (In-Line)	4	Brass	-55 °C	250 °C	304	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	18 A	Shielded	Brass, Chrome	Chrome	Gold			0.165 in	4.2 mm	0.102 in	2.6 mm
LEMO FFP.3S.316.ZLA				-55 °C	250 °C	316	Polyetheretherketone (PEEK)	UL94 V-0	Keyed		Insert Only, Requires Shell			Brass, Bronze	IP50	Female Sockets, Insert, Male Pins	7 A	Shielded			Gold							16
LEMO FFP.3S.312.CLAC72	Free Hanging (In-Line)	12	Brass	-55 °C	250 °C	312	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	8 A	Shielded	Brass, Chrome	Chrome	Gold								7.2 mm	0.283 in	5.8 mm	0.228 in
LEMO FFP.3S.304.CLAC11	Free Hanging (In-Line)	4	Brass	-55 °C	250 °C	304	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	18 A	Shielded	Brass, Chrome	Chrome	Gold	9.8 mm, 10.5 mm											0.386 in, 0.413 in
LEMO FFP.3S.155.LNN
LEMO FFP.3S.314.CLAC10
LEMO FFP.3S.314.CLAC72	Free Hanging (In-Line)	14	Brass	-55 °C	250 °C	314	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	7 A	Shielded	Brass, Chrome	Chrome	Gold								7.2 mm	0.283 in	5.8 mm	0.228 in
LEMO FFP.3S.304.CLAC82	Free Hanging (In-Line)	4	Brass	-55 °C	250 °C	304	Polyetheretherketone (PEEK)	UL94 V-0	Keyed	Metal	Backshell	Silver	Push-Pull	Brass, Bronze	IP50	Female Sockets, Male Pins, Plug	18 A	Shielded	Brass, Chrome	Chrome	Gold
