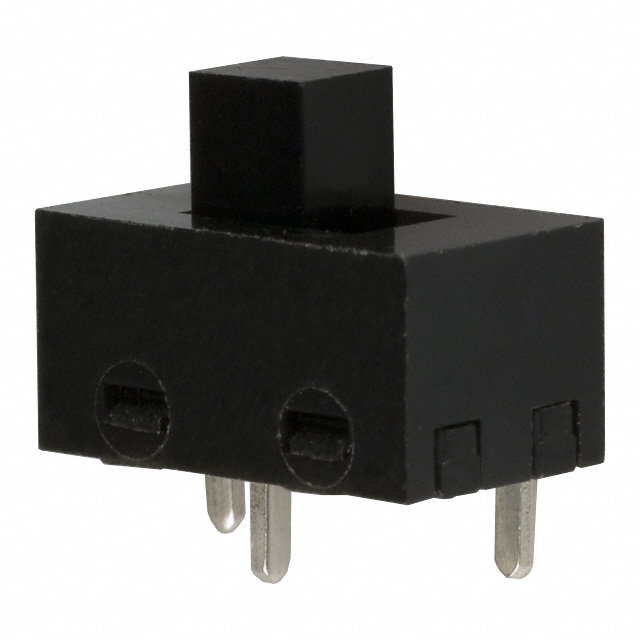

G-107-0513
ActiveCW Industries
SWITCH SLIDE SPDT 500MA 125V
Deep-Dive with AI
Search across all available documentation for this part.
G-107-0513
ActiveCW Industries
SWITCH SLIDE SPDT 500MA 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G-107-0513 |
|---|---|
| Actuator Length [x] | 3.56 mm |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 500 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Switch Travel [custom] | 2.29 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.51 | |
| 10 | $ 1.47 | |||
| 25 | $ 1.33 | |||
| 100 | $ 1.16 | |||
| 250 | $ 1.06 | |||
Description
General part information
G-107-0 Series
Slide Switch SPDT Through Hole
Documents
Technical documentation and resources
No documents available
