THC63LVD827-Q

Active

CEL

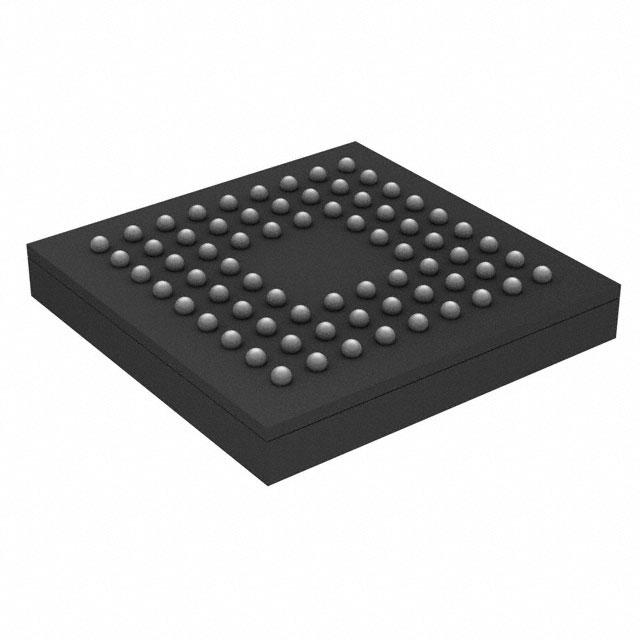

IC TRANSMITTER LVDS 72VFBGA

Search across all available documentation for this part.

Active

CEL

IC TRANSMITTER LVDS 72VFBGA

Technical Specifications

Parameters and characteristics commom to parts in this series

IC TRANSMITTER LVDS 72VFBGA

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Function	Qualification	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Supplier Device Package	Output Type	Input Type	Number of Inputs	Number of Outputs	Data Rate	Grade	Package / Case	Package / Case
CEL THC63LVD827-Q	3.6 V	1.62 V	Serializer	AEC-Q100	85 °C	-40 °C	72-TFBGA	Surface Mount	72-TFBGA (7x7)	LVDS	CMOS/TTL	56	8	1.218 Gbps	Automotive
CEL THC63LVDM83E-B	3.6 V	3 V	Serializer		70 °C	0 °C	49-VFBGA	Surface Mount	49-VFBGA (5x5)	LVDS	CMOS/TTL	28	4	1.12 Gbps
CEL THC63LVDM83C-5S	3.6 V	3 V	Serializer		85 °C	-40 °C	56-TFSOP	Surface Mount	56-TSSOP	LVDS	CMOS/TTL	28	4			6.1 mm	0.24 in
CEL THC63LVD824A	3.6 V	3 V	Deserializer		70 °C	-10 °C	100-TQFP	Surface Mount	100-TQFP (14x14)	CMOS/TTL	LVDS	8	56
CEL THC63LVDM83C-5S-B	3.6 V	3 V	Serializer		85 °C	-40 °C	56-TFSOP	Surface Mount	56-TSSOP	LVDS	CMOS/TTL	28	4			6.1 mm	0.24 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.42
	Digi-Reel®	1	$ 11.42
	Tape & Reel (TR)	2000	$ 6.24

General part information

1.218Gbps Serializer 56 Input 8 Output 72-TFBGA (7x7)

Technical documentation and resources
