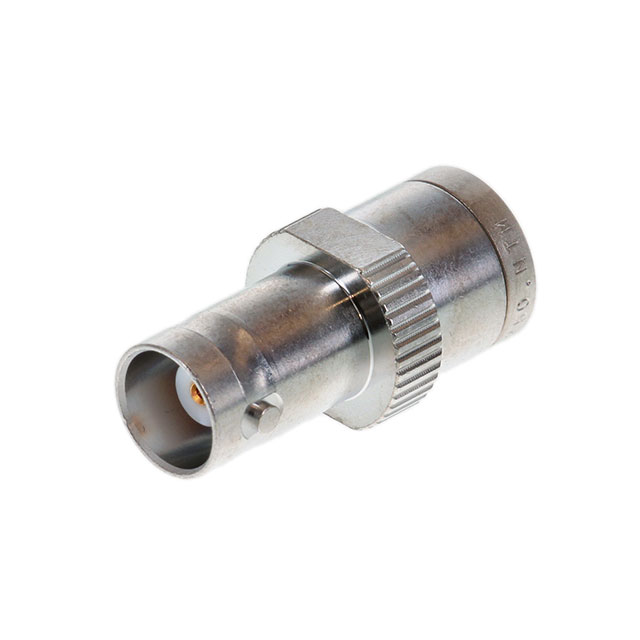

ABC.00.250.NTM

Active

LEMO

CONN ADAPT NIM-CAM JACK-BNC JACK

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT NIM-CAM JACK-BNC JACK

Technical Specifications

Parameters and characteristics for this part

Specification	ABC.00.250.NTM

Adapter Series	BNC to NIM-CAMAC CD/N 549
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket
Convert To (Adapter End)	Female Socket, BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Push-Pull
Impedance	50 Ohms
Ingress Protection	IP50
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

CONN ADAPT NIM-CAM JACK-BNC JACK

Part	Adapter Type	Impedance	Dielectric Material	Conversion Type	Body Material	Fastening Type	Center Contact Plating	Center Gender	Mating Cycles	Convert To (Adapter End)	Center Contact Material	Ingress Protection	Body Finish	Mounting Type	Convert From (Adapter End)	Adapter Series	Style
LEMO ABC.00.250.NTM	Jack to Jack	50 Ohms	Polytetrafluoroethylene (PTFE)	Between Series	Brass	Bayonet Lock, Push-Pull	Gold	Female to Female	500	BNC Jack, Female Socket	Bronze	IP50	Nickel	Free Hanging (In-Line)	NIM-CAMAC CD/N 549 Jack, Female Socket	BNC to NIM-CAMAC CD/N 549	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To BNC Jack, Female Socket 50 Ohms
