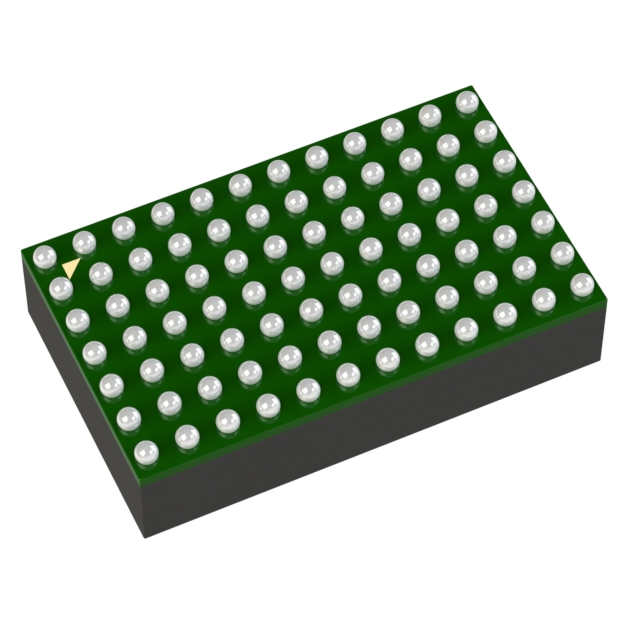

LTM4618IY#PBF

Active

Analog Devices

DC/DC POL CONVERTER, MODULE, BUCK, 4.5 V TO 26.5 V IN, 800 MV TO 5 V / 6 A OUT, BGA-84

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LTM4618IY#PBF

Active

Analog Devices

DC/DC POL CONVERTER, MODULE, BUCK, 4.5 V TO 26.5 V IN, 800 MV TO 5 V / 6 A OUT, BGA-84

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM4618IY#PBF

Applications	ITE (Commercial)
Current - Output (Max) [Max]	6 A
Features	SCP, UVLO, OVP, OCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	84-BBGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.35 "
Size / Dimension [y]	9 mm
Size / Dimension [z]	4.3 mm
Size / Dimension [z]	0.17 in
Supplier Device Package	84-BGA (15x9)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	26.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5 V
Voltage - Output 1 [Min]	0.8 V

LTM4618 Series

Part	Number of Outputs	Supplier Device Package	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Applications
Analog Devices LTM4618IY#PBF	1	84-BGA (15x9)	84-BBGA Module	OCP OVP SCP UVLO	125 °C	-40 °C	4.3 mm	0.59 in	15 mm	0.17 in	0.35 "	9 mm	Surface Mount	0.8 V	5 V	4.5 V	Non-Isolated PoL Module	26.5 V	6 A	ITE (Commercial)
Analog Devices LTM4618IV#PBF	1	84-LGA (15x9)	84-BLGA Module	OCP OVP SCP UVLO	125 °C	-40 °C	4.3 mm	0.59 in	15 mm	0.17 in	0.35 "	9 mm	Surface Mount	0.8 V	5 V	4.5 V	Non-Isolated PoL Module	26.5 V	6 A	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 26.74
		5	$ 25.21
		10	$ 24.58
		25	$ 23.77
		40	$ 23.36
		80	$ 22.78
		230	$ 21.91
		440	$ 21.40
Newark	Each	1	$ 26.41
		5	$ 25.43
		10	$ 25.01
		25	$ 24.48
		50	$ 24.21
		100	$ 23.80
		340	$ 23.39

Description

General part information

LTM4618 Series

LTM4618 is a complete 6A output switch mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductor and all support components. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization and output voltage tracking for supply rail sequencing. Burst Mode operation or pulse skipping mode can be selected for light load conditions. Fault protection features include overvoltage protection, overcurrent protection and foldback current limit for short-circuit protection. It is widely used in application such as telecom and networking equipment, servers, storage cards, ATCA Cards, industrial equipment, point of load regulation, medical systems etc.
