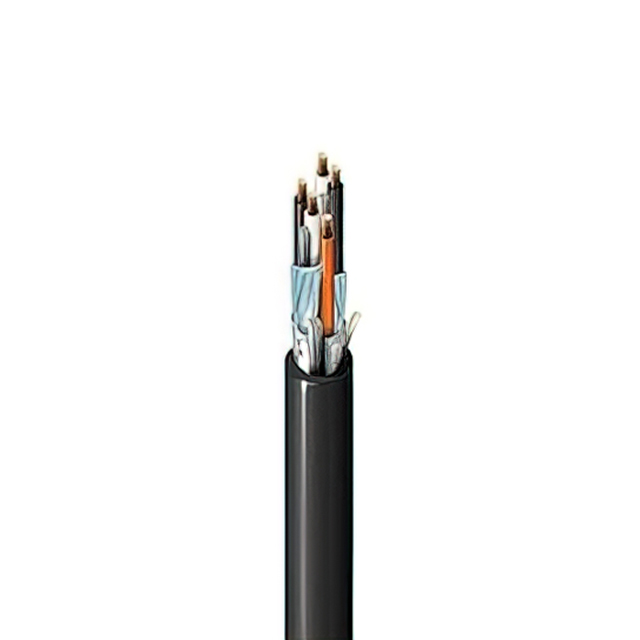

1475A 0105000

Active

Belden Inc.

MULTI-PAIR 9COND 18/22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 9COND 18/22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1475A 0105000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30, 26
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	12.04 mm
Jacket (Insulation) Diameter [diameter]	0.474 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.346 mm
Jacket (Insulation) Thickness	0.053 in
Jacket Color	Black
Number of Conductors	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Voltage	300 V
Wire Gauge	22 AWG, 18 AWG

Part	Usage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket Color	Conductor Material	Jacket (Insulation) Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Cable Type	Ratings	Conductor Insulation	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Voltage
Belden Inc. 1475A 0105000	Instrumentation	Aluminum	-30 ░C	105 ░C	Foil	Black	Copper Bare	Poly-Vinyl Chloride (PVC)	Drain Wire Rip Cord	1.346 mm	0.053 in	9	Multi-Pair	UL Style 2464	Poly-Vinyl Chloride (PVC)	100 %	12.04 mm	0.474 in	18 AWG 22 AWG	7	26 30	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 3.54

General part information

9 (4.5 Pair) Conductor Multi-Pair Cable Black 18 AWG, 22 AWG Foil 5000' (1524.0m)
