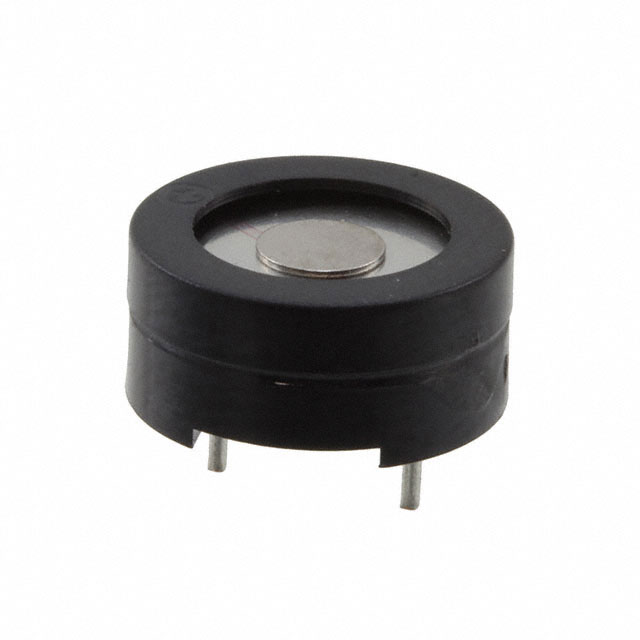

AT-1220-TT-11-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EM 1.5VPK 2048HZ 80DBA TOP FIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT-1220-TT-11-R
ActivePUI AUDIO
SPEAKERS & TRANSDUCERS EM 1.5VPK 2048HZ 80DBA TOP FIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AT-1220-TT-11-R | AT Series |
|---|---|---|
| - | - | |
| Current - Supply | 10 mA | 10 mA |
| Driver Circuitry | Externally Driven, Transducer | Externally Driven, Transducer |
| Frequency | 2.048 kHz | 2.048 kHz |
| Height - Seated (Max) [Max] | 0.236 in | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm | 6 mm |
| Input Type | Peak-Peak Signal | Peak-Peak Signal |
| Mounting Type | Through Hole | Through Hole |
| Operating Mode | Single Tone | Single Tone |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 12 mm | 12 mm |
| Size / Dimension [diameter] | 0.472 in | 0.472 in |
| Sound Pressure Level (SPL) | 78 dB | 78 dB |
| Technology | Electromechanical/Magnetic | Electromechanical/Magnetic |
| Termination | PC Pins | PC Pins |
| Voltage - Rated | 1.5 VDC | 1.5 VDC |
| Voltage Range [Max] | 4 V | 4 V |
| Voltage Range [Min] | 1 V | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
AT Series
Speakers & Transducers 3MA 5V 78DBA 4000HZ
| Part | Termination | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Operating Mode | Port Location | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Voltage Range [Max] | Voltage Range [Min] | Voltage - Rated | Current - Supply | Mounting Type | Sound Pressure Level (SPL) | Frequency | Driver Circuitry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PUI AUDIO AT-1740-TT-R | |||||||||||||||||||
PUI AUDIO AT-1220-TT-11-R | PC Pins | Electromechanical/Magnetic | -20 C | 60 °C | Peak-Peak Signal | 12 mm | 0.472 in | Single Tone | Top | 0.236 in | 6 mm | 4 V | 1 V | 1.5 VDC | 10 mA | Through Hole | 78 dB | 2.048 kHz | Externally Driven, Transducer |
PUI AUDIO AT-1220-TT-11-R | |||||||||||||||||||
PUI AUDIO AT-2250-T-LW50-R |
Description
General part information
AT Series
Speakers & Transducers 3MA 5V 78DBA 4000HZ
