Specification	2173470290

Accessory Type	Terminal Position Assurance (TPA)
Color	Gray
For Use With/Related Products	VersaBlade Contacts
Material	Polyamide (PA6), Nylon 6
Number of Positions	2
Position	2
Specifications	2 Position

217347 Series

Part	Material - Insulation	Note	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Voltage Rating	Color	Connector Type	Pitch	Number of Rows	Number of Positions	Stacking Direction	Mounting Type	Contact Termination	Contact Type	Specifications	Position	For Use With/Related Products	Material	Accessory Type	Row Spacing	Contact Finish Thickness	Contact Finish	Type	Contact Material	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)

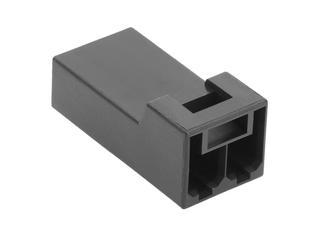

Molex 2173470200	Nylon 6 PA6 Polyamide	Contacts Not Included	150 °C	-55 °C	Locking Ramp	600 V	Black	Receptacle	0.244 in	1	2	Side to Side	Free Hanging (In-Line)	Crimp	Male Blade
Molex 2173470290							Gray				2					2 Position	2	VersaBlade Contacts	Nylon 6 Polyamide (PA6)	Terminal Position Assurance (TPA)
Molex 2173470400							Black	Receptacle	0.244 in	2	4	Side to Side	Free Hanging (In-Line)	Crimp	Female Blade Socket						0.244 in

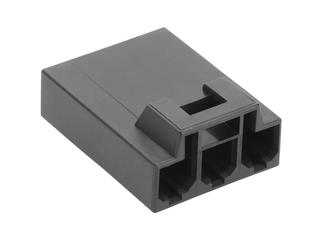

Molex 2173470300
Molex 2173478000														Crimp	Male Blade							31.5 µin	Tin	Stamped	Copper Alloy	18 AWG	14 AWG
Molex 2173470390
