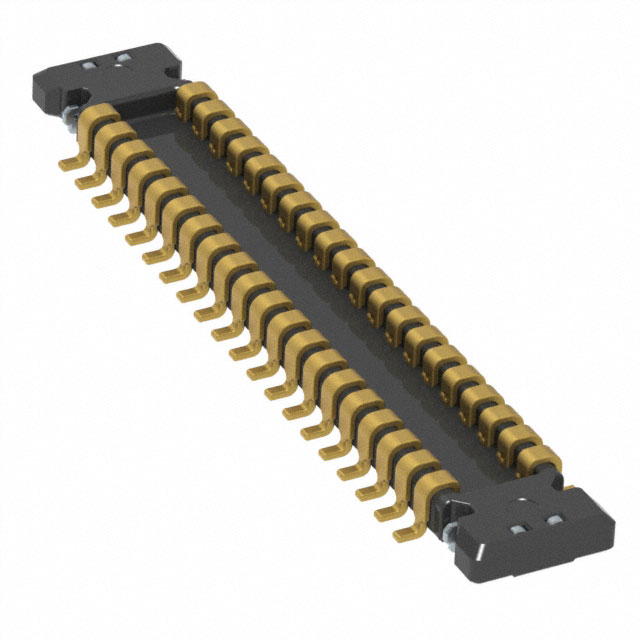

AXG8400J4
ObsoletePanasonic Electric Works
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXG8400J4
ObsoletePanasonic Electric Works
CONN PLUG 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXG8400J4 |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.46 mm |
| Height Above Board | 0.018 in |
| Mated Stacking Heights | 0.6 mm |
| Mounting Type | Surface Mount |
| Number of Positions [custom] | 40 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Pitch [x] | 0.35 mm |
| Pitch [x] | 0.014 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AXG840 Series
42 (40 + 2 Power) Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
