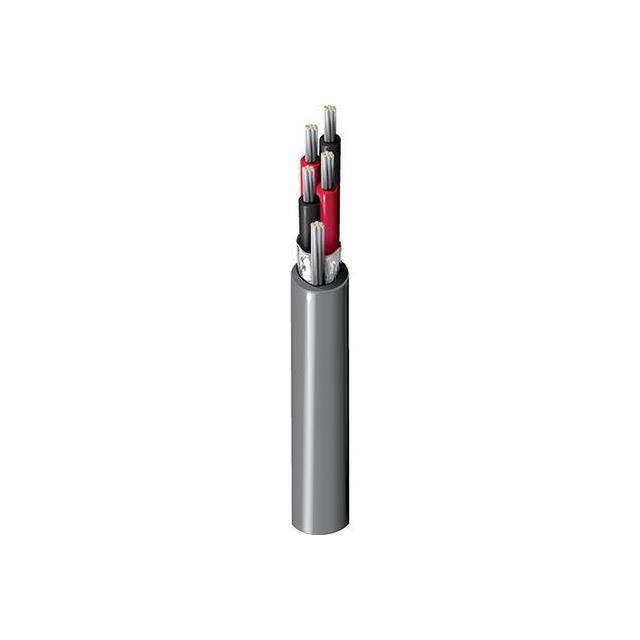

Specification	9563 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Tinned, Copper
Conductor Strand Count	19
Conductor Strand Gauge	30 AWG
Features	Drain Wire, UV Resistant, Direct Burial, Ripcord
Jacket (Insulation) Diameter	0.665 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Chrome
Length	500 ft
Number of Conductors	22
Number of Conductors - Pair	11
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Ratings	UL, 2464, Style
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Instrumentation
Wire Gauge	18 AWG

9563 Series

Part	Jacket (Insulation) Material	Conductor Strand Count	Conductor Strand Gauge	Number of Conductors - Pair	Number of Conductors	Conductor Insulation	Conductor Material	Ratings	Length	Shield Type	Jacket (Insulation) Thickness	Wire Gauge	Features	Jacket Color	Jacket (Insulation) Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Usage	Cable Type	Shield Material	Shield Coverage
Belden Inc. 9563 060500	Poly-Vinyl Chloride (PVC)	19	30 AWG	11	22	Poly-Vinyl Chloride (PVC)	Copper Tinned	2464 Style UL	500 ft	Foil	0.063 in	18 AWG	Direct Burial Drain Wire Ripcord UV Resistant	Chrome	0.665 in	-30 °C	105 °C	Instrumentation	Multi-Pair	Aluminum	100 %
Belden Inc. 9563 0601000	Poly-Vinyl Chloride (PVC)	19	30 AWG	11	22	Poly-Vinyl Chloride (PVC)	Copper Tinned	2464 Style UL	1000 ft	Foil	0.063 in	18 AWG	Direct Burial Drain Wire Ripcord UV Resistant	Chrome	0.665 in	-30 °C	105 °C	Instrumentation	Multi-Pair	Aluminum	100 %
