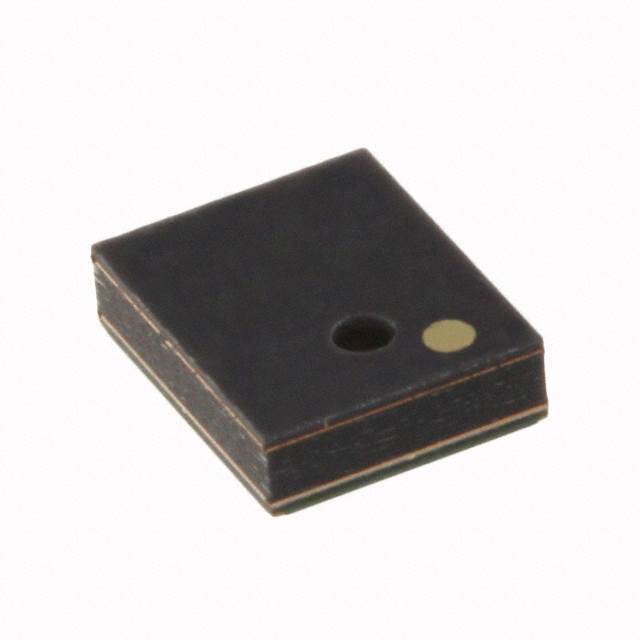

MP45DT02TR
ObsoleteSTMicroelectronics
MIC MEMS DIGITAL PDM OMNI -26DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP45DT02TR
ObsoleteSTMicroelectronics
MIC MEMS DIGITAL PDM OMNI -26DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP45DT02TR |
|---|---|
| Current - Supply | 650 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 100 Hz |
| Height (Max) [Max] [z] | 0.054 in |
| Height (Max) [Max] [z] | 1.38 mm |
| Output Type | PDM, Digital |
| Port Location | Top |
| S/N Ratio | 61 dB |
| Sensitivity | -26 dB |
| Shape | Rectangular |
| Size / Dimension [x] | 4.72 mm |
| Size / Dimension [x] | 0.186 " |
| Size / Dimension [y] | 3.76 mm |
| Size / Dimension [y] | 0.148 " |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage - Rated | 1.8 V |
| Voltage Range [Max] | 3.6 V |
| Voltage Range [Min] | 1.64 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MP45 Series
100 Hz ~ 10 kHz Digital, PDM Microphone MEMS (Silicon) 1.64 V ~ 3.6 V Omnidirectional (-26dB ±3dB @ 94dB SPL) Solder Pads
