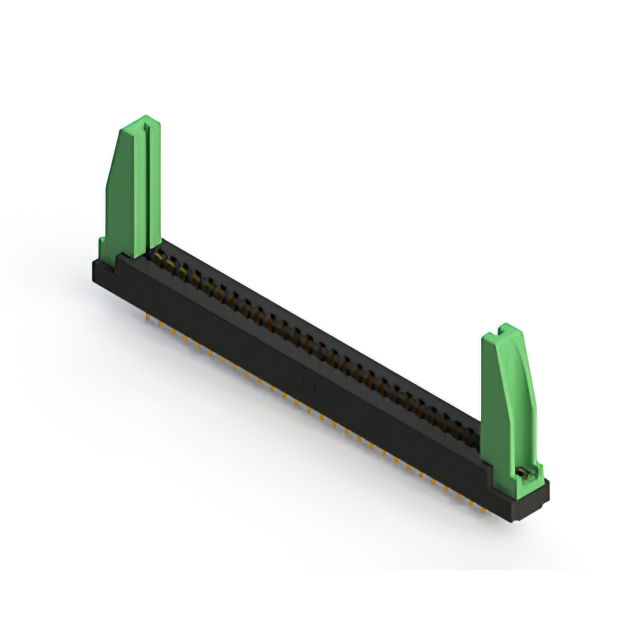

355-056-520-578
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
355-056-520-578
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 56POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 355-056-520-578 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
355-056 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Card Type | Number of Positions | Gender | Termination Rows | Number of Rows | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Mounting Type | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Read Out | Material - Insulation | Contact Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Dual | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Dual | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Board Edge Straddle Mount | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Board Edge Straddle Mount | Solder | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Dual | Polyester Thermoplastic | Copper Alloy | Card Extender |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Board Edge Straddle Mount | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | Copper Alloy | Card Extender | ||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Dual | Polyester Thermoplastic | Copper Alloy | |
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Panel Mount Through Hole | Solder | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Polyester Thermoplastic | Copper Alloy | |||
EDAC Inc. | -40 °C | 105 ░C | 10 Áin | 0.25 Ám | Semi Bellows | Non Specified - Dual Edge | 56 | Female | 2 | 2 | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 0.156 in | 3.96 mm | 28 | Free Hanging (In-Line) | Solder Eyelet(s) | Dual | Polyester Thermoplastic | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
355-056 Series
56 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
