GPT-1 Series

Part	Color	Length (yd)	Length (ft)	Thickness - Adhesive	Tape Type	Adhesive	Backing	Carrier	Usage	Temperature Range (Max)	Temperature Range (Min)	Thickness	Thickness - Backing, Carrier	Width	Shelf Life	Shelf Life Start
Bertech GPT-1 1/4	Green	72 yd	216 ft	0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-99 °F	0.0035 in	0.002 in	1.25 in
Bertech GPT-1 5/8	Green	72 yd	216 ft	0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-99 °F	0.0035 in	0.002 in	1.63 in
Bertech GPT-1 1/2	Green	72 yd	216 ft	0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-99 °F	0.0035 in	0.002 in	1.5 in
Bertech GPT-1 1/8	Green	72 yd	216 ft	0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-99 °F	0.0035 in	0.002 in	1.13 in
Bertech GPT-1 3/4	Green	72 yd	216 ft	0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-99 °F	0.0035 in	0.002 in	1.75 in

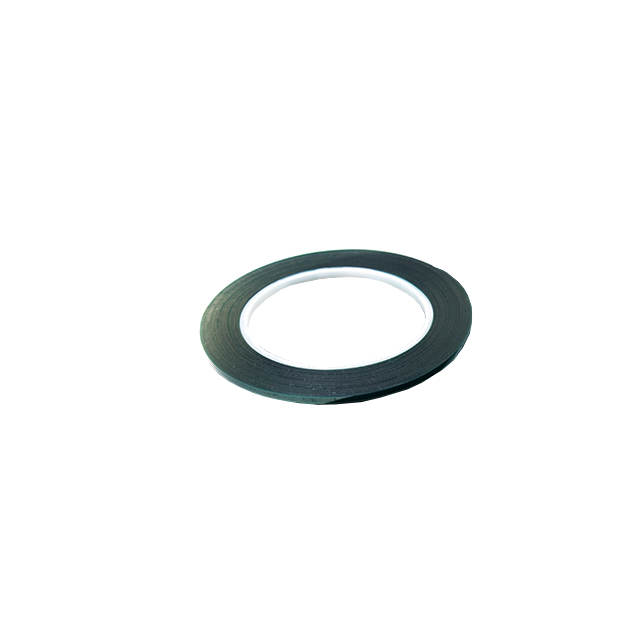

Bertech GPT-1/8	Green			0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-100 °F	0.0035 in	0.002 in	0.13 in	18 Months	Date of Manufacture
Bertech GPT-1/2	Green			0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-100 °F	0.0035 in	0.002 in	12.7 mm	18 Months	Date of Manufacture
Bertech GPT-1/4	Green			0.0015 in	Masking	Silicone	Polyester Film	Polyester Film	Masking	200 °C	-100 °F	0.0035 in	0.002 in	0.25 in	18 Months	Date of Manufacture
