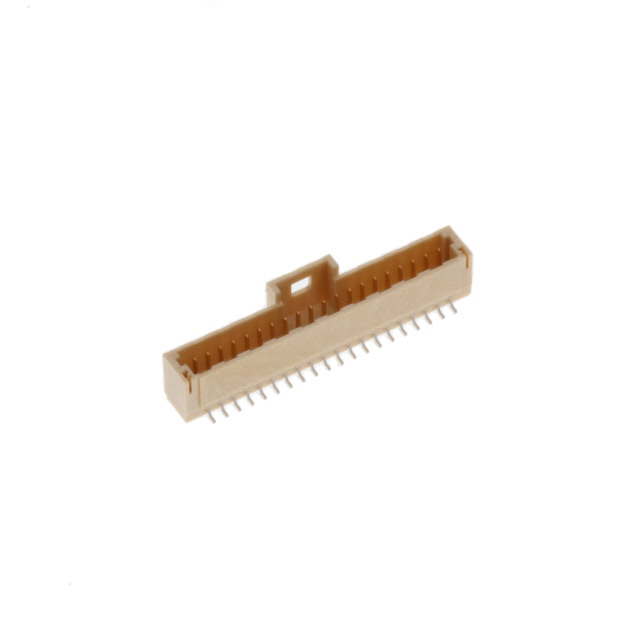

T1M-20-F-SV-L-P

Active

Samtec Inc.

WTB CONN, HEADER, 20POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN MicroMATE 1.00mm Discrete Wire Terminal Strip +1

T1M-20-F-SV-L-P

Active

Samtec Inc.

WTB CONN, HEADER, 20POS, 1ROW, 1MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDrawing EN MicroMATE 1.00mm Discrete Wire Terminal Strip +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-20-F-SV-L-P

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-20 Series

Part	Termination	Voltage Rating	Contact Finish - Post	Current Rating (Amps)	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Insulation Color	Number of Rows	Pitch - Mating	Pitch - Mating	Connector Type	Style	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Shape	Contact Finish - Mating	Features	Contact Type	Shrouding	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. T1M-20-F-SH-L-K	Solder	250 VAC 353 VDC	Tin	3.3 A	All	Liquid Crystal Polymer (LCP)	4.6 mm	0.181 in	Natural	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount Right Angle	3 µin	0.076 µm	Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square	Gold	Pick and Place	Male Pin	Shrouded - 4 Wall	UL94 V-0
Samtec Inc. T1M-20-GF-S-V-K-TR	Solder	250 VAC 353 VDC	Tin	3.3 A	All	Liquid Crystal Polymer (LCP)	4.25 mm	0.167 in	Black	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount	3 µin	0.076 µm	Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square	Gold	Pick and Place	Male Pin	Shrouded - 4 Wall	UL94 V-0
Samtec Inc. T1M-20-T-S-RA-TR	Solder	250 VAC 353 VDC	Tin	3.3 A	All	Liquid Crystal Polymer (LCP)	3.2 mm	0.126 in	Natural	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount Right Angle			Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square			Male Pin	Shrouded - 4 Wall	UL94 V-0
Samtec Inc. T1M-20-T-SH-L	Solder	250 VAC 353 VDC	Tin	3.3 A	All	Liquid Crystal Polymer (LCP)	4.6 mm	0.181 in	Natural	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount Right Angle			Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square			Male Pin	Shrouded - 4 Wall	UL94 V-0
Samtec Inc. T1M-20-GF-S-V-TR	Solder	250 VAC 353 VDC	Gold	3.3 A	All	Liquid Crystal Polymer (LCP)	4.25 mm	0.167 in	Natural	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount	3 µin	0.076 µm	Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square	Gold		Male Pin	Shrouded - 4 Wall	UL94 V-0	3 µin	0.076 µm
Samtec Inc. T1M-20-F-SV-L-P	Solder	250 VAC 353 VDC	Tin	3.3 A	All	Liquid Crystal Polymer (LCP)			Natural	1	0.039 in	1 mm	Header	Board to Cable/Wire	Surface Mount	3 µin	0.076 µm	Locking Ramp	20	85 °C	-55 °C	Phosphor Bronze	Square	Gold		Male Pin	Shrouded - 4 Wall	UL94 V-0			5.51 mm	0.217 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.06
		50	$ 3.31
		100	$ 2.81
	Digi-Reel®	1	$ 4.06
		50	$ 3.31
		100	$ 2.81
	Tape & Reel (TR)	400	$ 2.81
		800	$ 2.50
		1200	$ 2.36
Newark	Each	1	$ 2.08
		10	$ 1.93
		25	$ 1.79
		50	$ 1.78

Description

General part information

T1M-20 Series

Connector Header Surface Mount 20 position 0.039" (1.00mm)

Documents

Technical documentation and resources

Drawing EN

Datasheet

MicroMATE 1.00mm Discrete Wire Terminal Strip

Datasheet
