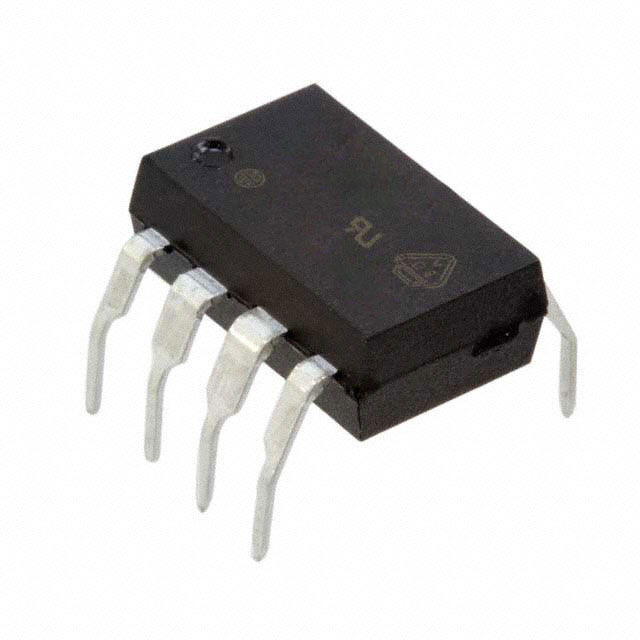

6N136-X016

Obsolete

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 8DIP

Search across all available documentation for this part.

Obsolete

Vishay Semiconductor Opto Division

OPTOISO 5.3KV TRANS W/BASE 8DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Optoisolator Transistor with Base Output 5300Vrms 1 Channel 8-DIP

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	6N136-X016	6N136 Series

Current - DC Forward (If) (Max) [Max]	25 mA	25 mA
Current - Output / Channel [custom]	8 mA	8 mA
Current Transfer Ratio (Min) [Min]	19 %	19 %
Input Type	DC	DC
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	10.16 mm	10.16 mm
Package / Case	8-DIP	8-DIP
Package / Case	10.16 mm	0.3 - 10.16 mm
Package / Case	-	7.62 mm
Supplier Device Package	8-DIP	8-DIP, 8-SMD
Turn On / Turn Off Time (Typ)	200 ns	200 ns
Voltage - Isolation	5300 Vrms	5300 Vrms

OPTOISO 5.3KV TRANS W/BASE 8DIP

Part	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current Transfer Ratio (Min) [Min]	Input Type	Turn On / Turn Off Time (Typ)	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Number of Channels	Voltage - Isolation	Current - Output / Channel [custom]	Mounting Type	Package / Case
Vishay Semiconductor Opto Division 6N136-X016	10.16 mm	8-DIP	10.16 mm	100 °C	-55 °C	19 %	DC	200 ns	25 mA	8-DIP	1	5300 Vrms	8 mA	Through Hole
Vishay Semiconductor Opto Division 6N136-X006	10.16 mm	8-DIP	10.16 mm	100 °C	-55 °C	19 %	DC	200 ns	25 mA	8-DIP	1	5300 Vrms	8 mA	Through Hole
Vishay Semiconductor Opto Division 6N136-X017T				100 °C	-55 °C	19 %	DC	200 ns	25 mA	8-SMD	1	5300 Vrms	8 mA	Surface Mount
Vishay Semiconductor Opto Division 6N136-X007				100 °C	-55 °C	19 %	DC	200 ns	25 mA	8-SMD	1	5300 Vrms	8 mA	Surface Mount
Vishay Semiconductor Opto Division 6N136-X001		8-DIP	0.3 in	100 °C	-55 °C	19 %	DC	200 ns	25 mA	8-DIP	1	5300 Vrms	8 mA	Through Hole	7.62 mm
