TFA9891UK/N1/S1Z

Obsolete

NXP USA Inc.

IC AMP CLASS D MONO 3.6W 49WLCSP

Search across all available documentation for this part.

Obsolete

NXP USA Inc.

IC AMP CLASS D MONO 3.6W 49WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9891UK/N1/S1Z

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	3.6 W
Max Output Power x Channels @ Load [x]	1
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)

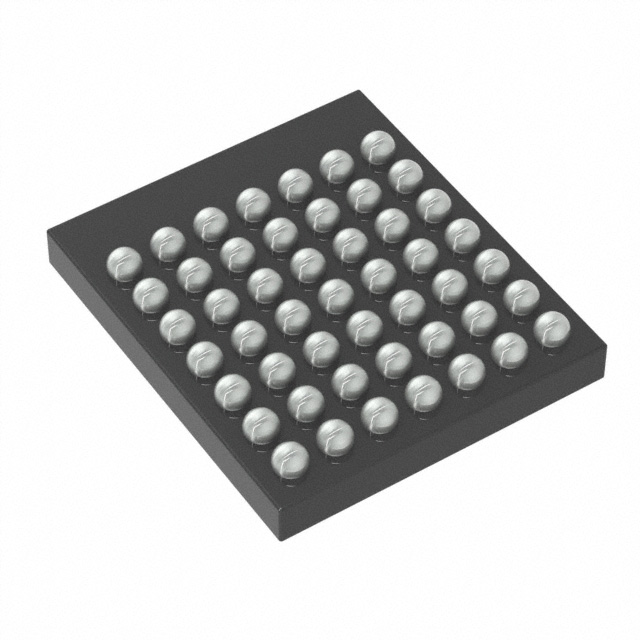

Package / Case	WLCSP, 49-UFBGA
Supplier Device Package	49-WLCSP
Supplier Device Package [x]	3.43
Supplier Device Package [y]	2.98
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

IC AMP CLASS D MONO 3.6W 49WLCSP

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [x]	Output Type	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]
NXP USA Inc. TFA9891UK/N1/S1Z	Depop, Short-Circuit, Thermal Protection	85 °C	-40 °C	Surface Mount	49-UFBGA, WLCSP	3.6 W	1	1-Channel (Mono)	49-WLCSP	2.98	3.43	Class D	2.7 V	5.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 1-Channel (Mono) Class D 49-WLCSP (3.43x2.98)

Technical documentation and resources

No documents available
