FZ250R65KE3NPSA1

Active

Infineon Technologies

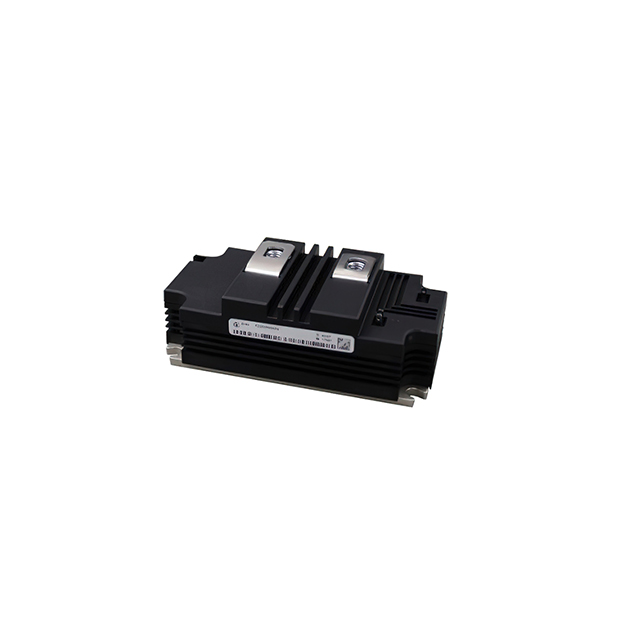

THE FZ250R65KE3 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A IHV HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 6500 V AND 250 A.

Search across all available documentation for this part.

Active

Infineon Technologies

THE FZ250R65KE3 IS A SINGLE SWITCH IGBT3 - E3 MODULE IN A IHV HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 6500 V AND 250 A.

Technical Specifications

Parameters and characteristics for this part

Specification	FZ250R65KE3NPSA1

Configuration	Single
Current - Collector (Ic) (Max) [Max]	500 A
Current - Collector Cutoff (Max) [Max]	5 mA
Input	Standard
Input Capacitance (Cies) @ Vce	69 nF
Mounting Type	Chassis Mount
NTC Thermistor	False
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Package / Case	Module
Power - Max [Max]	4800 W
Supplier Device Package	Module
Vce(on) (Max) @ Vge, Ic	3.4 V
Voltage - Collector Emitter Breakdown (Max) [Max]	6500 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Package / Case	Input	Input Capacitance (Cies) @ Vce	Configuration	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Vce(on) (Max) @ Vge, Ic	Current - Collector Cutoff (Max) [Max]	Power - Max [Max]	NTC Thermistor
Infineon Technologies FZ250R65KE3NPSA1	500 A	Chassis Mount	Module	Standard	69 nF	Single	Module	6500 V	-50 °C	125 °C	3.4 V	5 mA	4800 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1123.99

General part information

IHV 6500 V, 250 A 73 mm single switchIGBT Modulewith IGBT 3 and emitter controlled 3 diode.
