CASMA-UFL-10

Active

Multi-Tech Systems Inc.

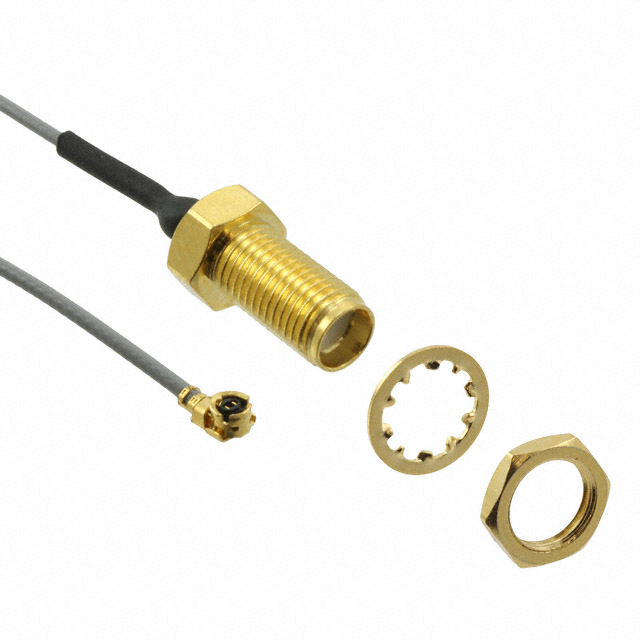

CBL ASSY U.FL-SMA JACK-PLUG 8"

Search across all available documentation for this part.

Active

Multi-Tech Systems Inc.

CBL ASSY U.FL-SMA JACK-PLUG 8"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CASMA-UFL-10	CASMA-UFL Series

1st Connector	SMA Jack	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Color	-	Gray
Length	8 in	8 in
Length	203.2 mm	203.2 mm
Style	U.FL (UMCC) to SMA	U.FL (UMCC) to SMA

CBL ASSY U.FL-SMA JACK-PLUG 8"

Part	1st Connector	1st Contact Gender	Length	Length	Style	2nd Connector Mounting Type	1st Connector Mounting Feature	2nd Connector	2nd Contact Gender	1st Connector Mounting Type	Color
Multi-Tech Systems Inc. CASMA-UFL-10	SMA Jack	Female	8 in	203.2 mm	U.FL (UMCC) to SMA	Free Hanging (In-Line)	Bulkhead - Front Side Nut	U.FL (UMCC) Plug, Right Angle	Female	Panel Mount
Multi-Tech Systems Inc. CASMA-UFL-50	SMA Jack	Female	8 in	203.2 mm	U.FL (UMCC) to SMA	Free Hanging (In-Line)	Bulkhead - Front Side Nut	U.FL (UMCC) Plug, Right Angle	Female	Panel Mount	Gray
Multi-Tech Systems Inc. CASMA-UFL-1	SMA Jack	Female	8 in	203.2 mm	U.FL (UMCC) to SMA	Free Hanging (In-Line)	Bulkhead - Front Side Nut	U.FL (UMCC) Plug, Right Angle	Female	Panel Mount	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial U.FL (UMCC) to SMA 8.000" (203.20mm)

Technical documentation and resources
